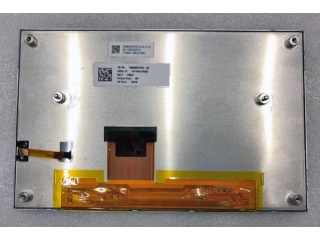

| Onderdeel nommer | TM080RDHP07 |
| Handelsmerk | TIANMA |
| Grootte | 8.0 |
| Toepassing | Automotive Display |
| Resolusie | 800×480 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | Parallel |
| handelsmerk | TIANMA |
| diagonale grootte | 8.0 inch |
| pixel formaat | 800(RGB)×480 [WVGA] 116PPI |
| aktiewe area | 174(H)×104.4(V) mm |
| ring area | 177(H)×107.4(V) mm |
| helderheid | 600 cd/m² (Typ.) |
| kyk rigting | Symmetry |
| kykhoek | 88/88/88/88 (Typ.)(CR≥10) |
| ondersteun kleur | 16.7M 71% NTSC |
| gewig | TBD |
| raamkoers | 60Hz |
| koppelvlak tipe | Parallel RGB (1 ch, 8-bit) , 60 pins FPC |
| kragtoevoer | 3.3/6.0/-6.0/17/-8V (Typ.)(VCC/VDDP/VDDN/VGH/VGL) |
| omgewing | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| model | TM080RDHP07 |
| tipe | a-Si TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 190.4(H)×120.7(V) ×16.1(D) mm |
| behandeling | Antiglare |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| reaksie tyd | 50 (Max.)(Tr+Td) |
| bedryfsmodus | SFT, Normally Black, Transmissive |
| Ligbron | WLED [8S2P] , 20K hours , W/O Driver |
| ontwerp vir | Automotive Display |
| raakpaneel | Without |
