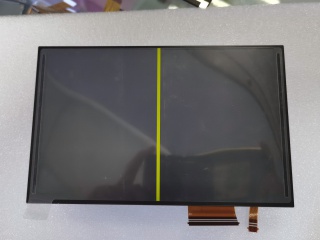

| Onderdeel nommer | TM070RDZG50 |
| Handelsmerk | TIANMA |
| Grootte | 7.0 |
| Toepassing | Automotive Display |
| Resolusie | 800×480 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 500:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| handelsmerk | TIANMA |
| diagonale grootte | 7.0 inch |
| pixel formaat | 800(RGB)×480 [WVGA] 134PPI |
| aktiewe area | 154.08(H)×85.92(V) mm |
| ring area | - |
| helderheid | - |
| kyk rigting | - |
| kykhoek | 70/70/60/70 (Typ.)(CR≥10) |
| ondersteun kleur | 16.7M |
| gewig | - |
| raamkoers | 60Hz |
| model | TM070RDZG50 |
| tipe | a-Si TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | - |
| behandeling | Antiglare |
| kontras verhouding | 500:1 (Typ.) (TM) |
| reaksie tyd | 15/25 (Typ.)(Tr/Td) |
| bedryfsmodus | TN, Normally White, Transmissive |
| Ligbron | WLED |
| ontwerp vir | Automotive Display |
| raakpaneel | - |
| TM070DDH01 | Tianma | 7.0 | 1024×600 |
| TM070DDH02 | Tianma | 7.0 | 1024×600 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
| TM070DDH08 | Tianma | 7.0 | 1024×600 |
| TM070DDH09 | Tianma | 7.0 | 1024×600 |
| TM070JDHP01-00 | Tianma | 7.0 | 1280×800 |
| TM070RDH01 | Tianma | 7.0 | 800×480 |
| TM070RDH11 | Tianma | 7.0 | 800×480 |
| TM070SDH03 | Tianma | 7.0 | 800×600 |
| TM070WA-22L06 | SANYO | 7.0 | 480×234 |
