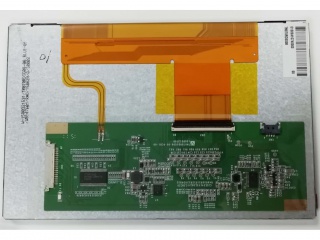

| Onderdeel nommer | TM070RDSG08 |
| Handelsmerk | TIANMA |
| Grootte | 7.0 |
| Toepassing | Industrial |
| Resolusie | 800×480 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K/16.7M |
| Agterlig | 10S3P |
| Koppelvlak | LVDS |
| vervaardiger | TIANMA |
| skerm grootte | 7.0 inch |
| pixel nommer | 800(RGB)×480 (WVGA) 133PPI |
| aktiewe area (mm) | 152.4 × 91.44 (H×V) |
| ring area (mm) | 155.4 × 94.44 (H×V) |
| helderheid | 500 cd/m² (Typ.) |
| kykhoek | 70/70/70/60 (Typ.)(CR≥10) |
| goeie uitsig by | - |
| kleurdiepte | 262K/16.7M 70% NTSC |
| massa | 176g (Typ.) |
| herlaaitempo | 60Hz |
| sein tipe | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| model naam | TM070RDSG08 |
| tipe skerm | LCM , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 166.4 × 107.2 × 8.5 (H×V×D) |
| behandeling | Antiglare |
| kontras verhouding | 500 : 1 (Typ.) (TM) |
| reaksie | 25 (Typ.)(Tr+Td) ms |
| werksmodus | TN, Normally White, Transmissive |
| agterlig | 10S3P WLED , 50K hours , With LED Driver |
| gebruik vir | Industrial |
| raakskerm | Without |
