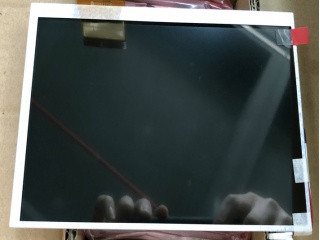

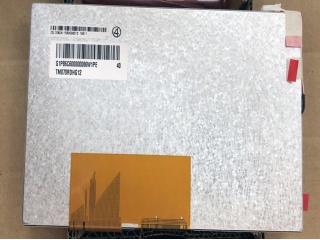

| Onderdeel nommer | TM070RDHG12 |
| Handelsmerk | TIANMA |
| Grootte | 7.0 |
| Toepassing | Portable DVD Player |
| Resolusie | 800×480 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K/16.7M |
| Agterlig | WLED |
| Koppelvlak | Parallel |
| handelsmerk | TIANMA |
| model | TM070RDHG12 |
| diagonale grootte | 7.0 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 800(RGB)×480 [WVGA] 134PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 154.08(H)×85.92(V) mm |
| buitelyn dof. | 164.9(H)×100(V) ×6(D) mm |
| ring area | 157.08(H)×89.39(V) mm |
| behandeling | Antiglare |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 500:1 (Typ.) (TM) |
| kyk rigting | 12 o'clock |
| reaksie tyd | 20 (Typ.)(Tr+Td) |
| kykhoek | 70/70/60/70 (Typ.)(CR≥10) |
| bedryfsmodus | TN, Normally White, Transmissive |
| ondersteun kleur | 262K/16.7M 50% NTSC |
| Ligbron | WLED [3S7P] , 20K hours , W/O Driver |
| gewig | 165g (Typ.) |
| ontwerp vir | Portable DVD Player Digital Photo Frame |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| kragtoevoer | 3.3/10.6/10.6/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| omgewing | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
