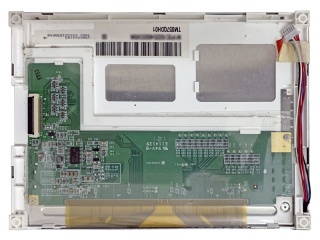

| Onderdeel nommer | TM057KDH01-10 |
| Handelsmerk | TIANMA |
| Grootte | 5.7 |
| Toepassing | Industrial |
| Resolusie | 320×240 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | 5S3P |
| Koppelvlak | Parallel |
| vervaardiger | TIANMA |
| model naam | TM057KDH01-10 |
| skerm grootte | 5.7 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 320(RGB)×240 (QVGA) 70PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 115.2 × 86.4 (H×V) |
| buitelyn (mm) | 144 × 104.6 × 12.8 (H×V×D) |
| ring area (mm) | 118.2 × 89.4 (H×V) |
| behandeling | Antiglare, Hard coating (3H) |
| helderheid | 400 cd/m² (Typ.) |
| kontras verhouding | 500 : 1 (Typ.) (TM) |
| kykhoek | 70/70/60/70 (Typ.)(CR≥10) |
| reaksie | 20 (Typ.)(Tr+Td) ms |
| goeie uitsig by | 12 o'clock |
| werksmodus | TN, Normally White, Transmissive |
| kleurdiepte | 262K 52% NTSC |
| agterlig | 5S3P WLED , 50K hours , No Driver |
| massa | 157g (Typ.) |
| gebruik vir | Industrial |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | Parallel RGB (1 ch, 6-bit) , Connector 33 pins |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
