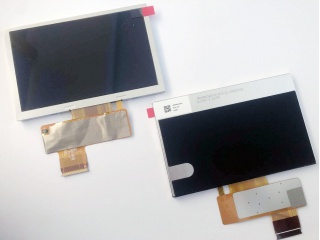

| Onderdeel nommer | TM050RDZG03-00 |
| Handelsmerk | TIANMA |
| Grootte | 5.0 |
| Toepassing | Industrial |
| Resolusie | 800×480 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 750:1 |
| Kleure | 16.7M |
| Agterlig | 3S6P |
| Koppelvlak | Parallel |
| paneel handelsmerk | TIANMA |
| paneel grootte | 5.0" |
| resolusie | 800(RGB)×480, WVGA, 188PPI |
| vertoon area | 108(W)×64.8(H) mm |
| omtrek grootte | 120.7(W)×77.8(H) ×5.9(D) mm |
| helderheid | 1000 cd/m² (Typ.) |
| kykhoek | 80/80/70/80 (Typ.)(CR≥10) |
| beste uitsig op | 12 o'clock |
| kleure vertoon | 16.7M 50% NTSC |
| frekwensie | 60Hz |
| paneel gewig | TBD |
| sein koppelvlak | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
| paneel model | TM050RDZG03-00 |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | 111.1(W)×67.9(H) mm |
| oppervlak | Antiglare |
| kontras verhouding | 750:1 (Typ.) (TM) |
| vertoonmodus | TN, Normally White, Transmissive |
| reaksie tyd | 20/30 (Typ./Max.)(Tr+Td) |
| tipe lamp | 3S6P WLED , 50K hours |
| raakskerm | Without |
| aansoek | Industrial |
