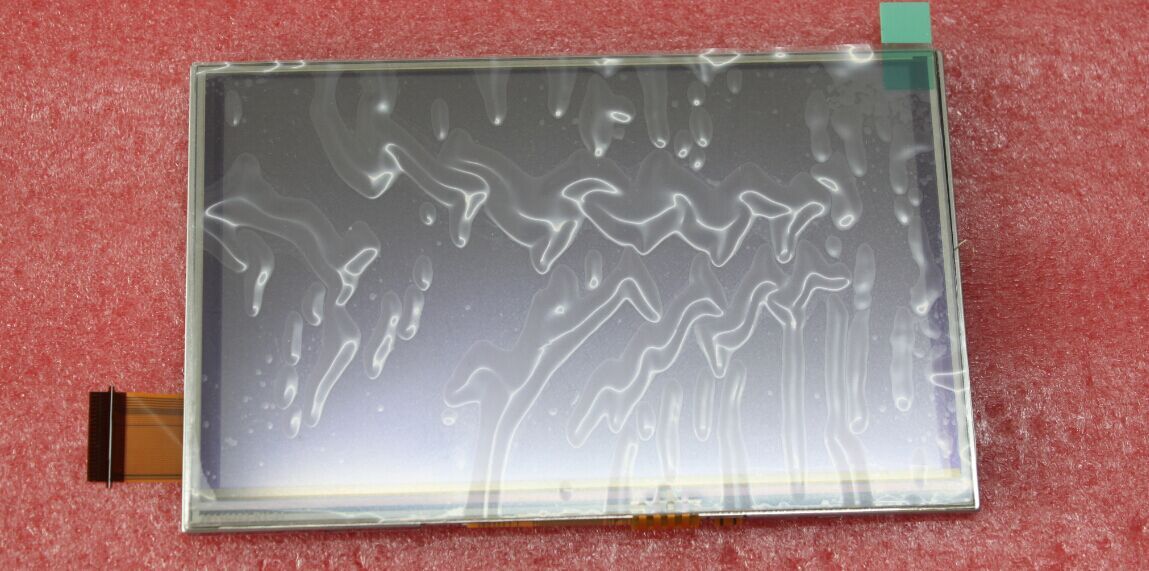

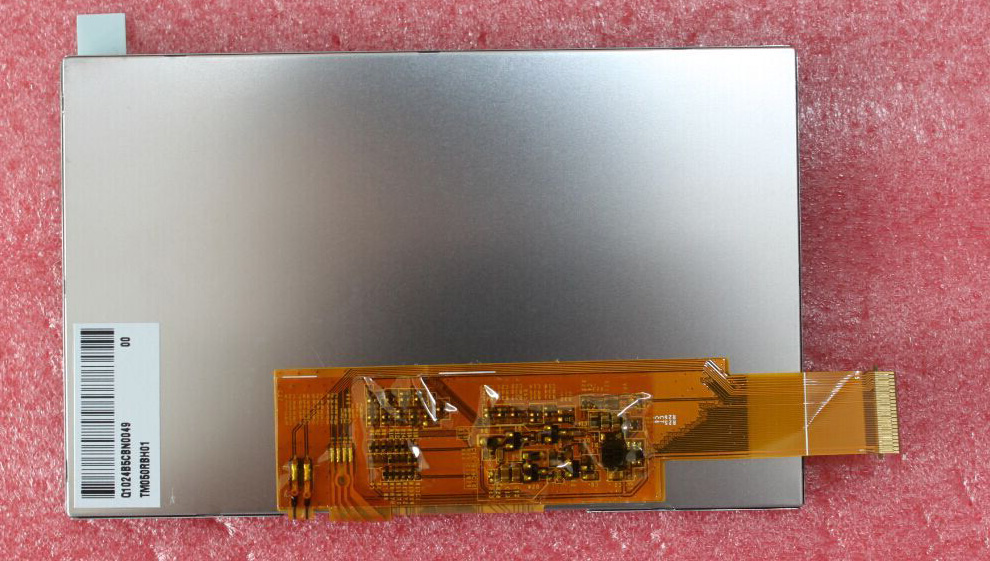

| Onderdeel nommer | TM050RBH01-00 |
| Handelsmerk | TIANMA |
| Grootte | 5.0 |
| Toepassing | Industrial Portable |
| Resolusie | 800×480 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 450:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | Parallel |
| handelsmerk | TIANMA |
| model | TM050RBH01-00 |
| diagonale grootte | 5.0 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 800(RGB)×480 [WVGA] 188PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 108(H)×64.8(V) mm |
| buitelyn dof. | 120.7(H)×75.8(V) ×6.3(D) mm |
| ring area | - |
| behandeling | Antiglare, Hard coating (3H) |
| helderheid | 300 cd/m² (Typ.) |
| kontras verhouding | 450:1 (Typ.) (TM) |
| kyk rigting | 12 o'clock |
| reaksie tyd | 20 (Typ.)(Tr+Td) |
| kykhoek | 70/70/50/70 (Typ.)(CR≥10) |
| bedryfsmodus | TN, Normally White, Transmissive |
| ondersteun kleur | 16.7M 50% NTSC |
| Ligbron | WLED [6S3P] , 20K hours , W/O Driver |
| gewig | 76.3g |
| ontwerp vir | Industrial Portable Navigation MID UMPC MP3 PMP |
| raamkoers | 60Hz |
| raakpaneel | 4-wire Resistive Touch |
| koppelvlak tipe | Parallel RGB (1 ch, 8-bit) , 45 pins FPC |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
