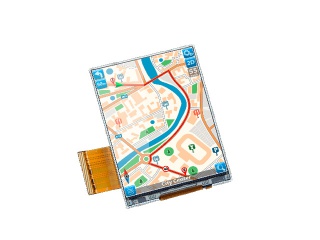

| Onderdeel nommer | TM035HDHP13 |
| Handelsmerk | TIANMA |
| Grootte | 3.5 |
| Toepassing | Outdoor High Brightn |
| Resolusie | 240×320 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | |
| paneel handelsmerk | TIANMA |
| paneel grootte | 3.5" |
| resolusie | 240(RGB)×320, QVGA, 114PPI |
| vertoon area | 53.28(W)×71.04(H) mm |
| omtrek grootte | 64(W)×85(H) mm |
| helderheid | 1000 cd/m² (Typ.) |
| kykhoek | 88/88/88/88 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| kleure vertoon | 262K 60% NTSC |
| gewig | - |
| paneel model | TM035HDHP13 |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| oppervlak | Antiglare |
| kontras verhouding | 800:1 (Typ.) (TM) |
| vertoonmodus | SFT, Normally Black, Transmissive |
| reaksie tyd | - |
| tipe lamp | WLED , 20K hours |
| aansoek | Outdoor High Brightness Handheld & PDA |
| TM035HDHT1 | Tianma | 3.5 | 240×320 |
| TM035KBH02 | Tianma | 3.5 | 320×240 |
| TM035KDH03-36 | Tianma | 3.5 | 320×240 |
| TM035KDH03-79 | Tianma | 3.5 | 320×240 |
| TM035KDH04 | Tianma | 3.5 | 320×240 |
| TM035KDH05 | Tianma | 3.5 | 320×240 |
| TM035KDH08 | Tianma | 3.5 | 320×240 |
| TM035NDH04 | Tianma | 3.5 | 272×480 |
| TM035PDH53 | Tianma | 3.5 | 320×480 |
| TM035PDZ15 | Tianma | 3.5 | 320×480 |
