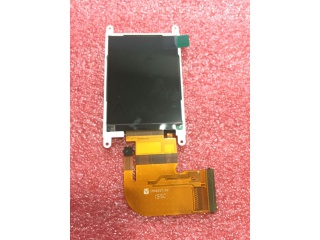

| Onderdeel nommer | TM024HDHG04 |
| Handelsmerk | TIANMA |
| Grootte | 2.4 |
| Toepassing | Handheld & PDA |
| Resolusie | 240×320 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleure | - |
| Agterlig | WLED |
| Koppelvlak | CPU |
| paneel handelsmerk | TIANMA |
| paneel model | TM024HDHG04 |
| paneel grootte | 2.4" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 240(RGB)×320, QVGA, 166PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 36.72(W)×48.96(H) mm |
| ring opening | - |
| helderheid | - |
| kontras verhouding | 500:1 (Typ.) (TM) |
| kykhoek | 70/70/70/60 (Typ.)(CR≥10) |
| vertoonmodus | TN, Normally White, Transmissive |
| beste uitsig op | - |
| reaksie tyd | 20 (Typ.)(Tr+Td) |
| kleure vertoon | |
| tipe lamp | WLED |
| frekwensie | - |
| raakskerm | Without |
| paneel gewig | - |
| aansoek | Handheld & PDA |
| sein koppelvlak | CPU FPC |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
