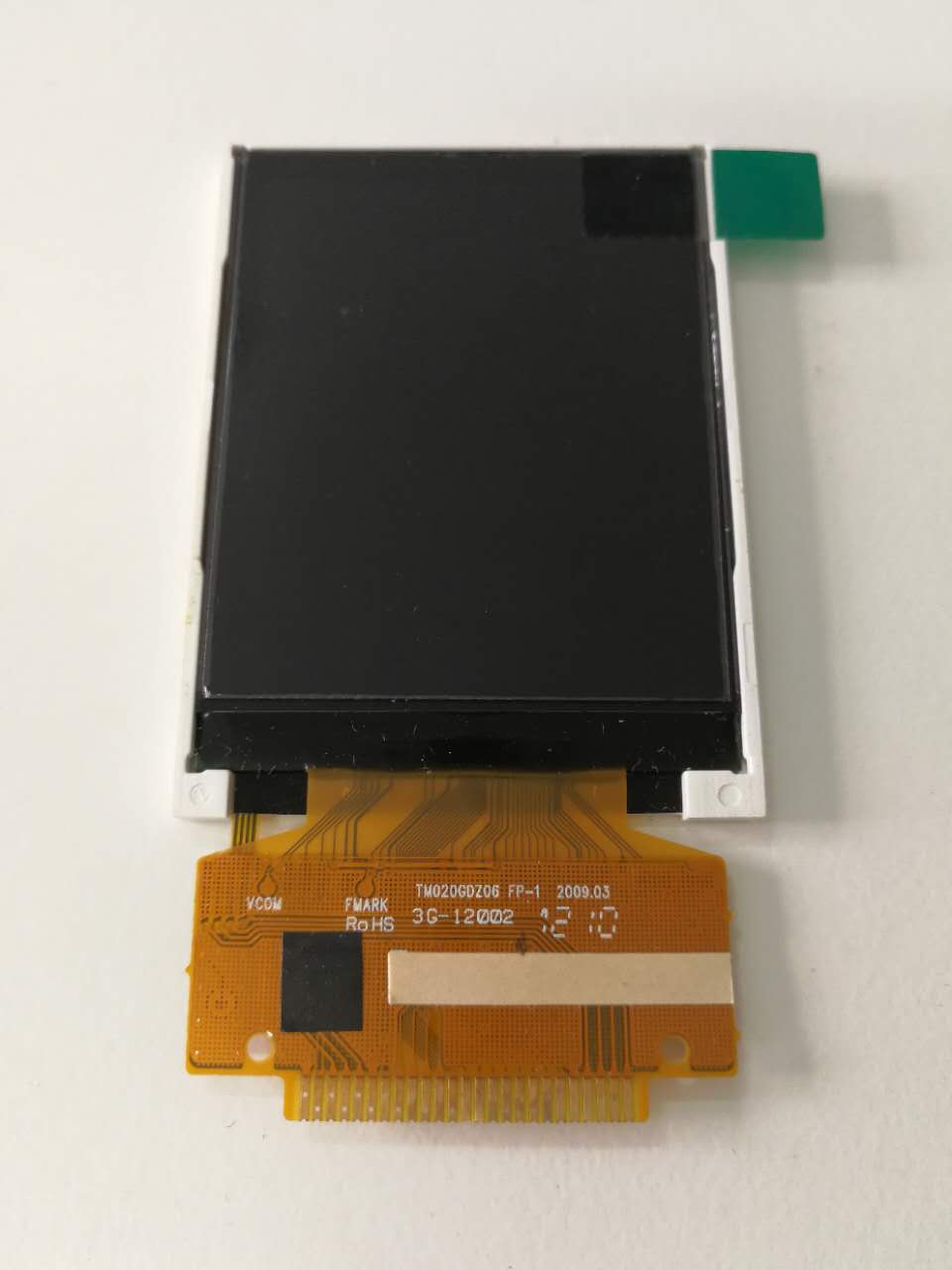

| Onderdeel nommer | TM020GDZ06 |
| Handelsmerk | TIANMA |
| Grootte | 2.0 |
| Toepassing | Mobile Phone |
| Resolusie | 176×220 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | |
| vervaardiger | TIANMA |
| model naam | TM020GDZ06 |
| skerm grootte | 2.0 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 176(RGB)×220 (QCIF+) 141PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 31.68 × 39.6 (H×V) |
| buitelyn (mm) | - |
| kykhoek | 50/50/25/50 (Typ.)(CR≥10) |
| reaksie | 30/30 (Typ.)(Tr/Td) ms |
| goeie uitsig by | 6 o'clock |
| werksmodus | TN, Normally White, Transmissive |
| kleurdiepte | 262K 40% NTSC |
| agterlig | WLED |
| massa | - |
| gebruik vir | Mobile Phone |
| herlaaitempo | - |
| raakskerm | Without |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
