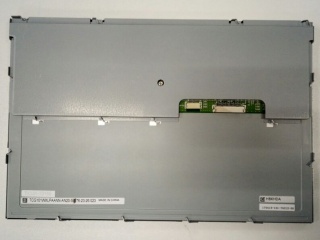

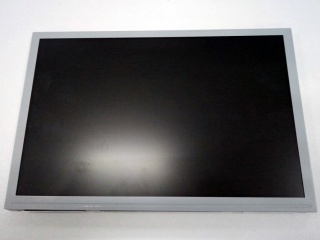

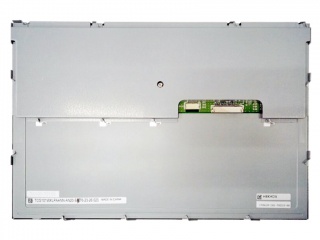

| Onderdeel nommer | TCG101WXLPAANN-AN20-S |
| Handelsmerk | Kyocera |
| Grootte | 10.1 |
| Toepassing | Industrial |
| Resolusie | 1280×800 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 16.2M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | Kyocera |
| paneel model | TCG101WXLPAANN-AN20-S |
| paneel grootte | 10.1" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1280(RGB)×800, WXGA, 149PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 216.96(W)×135.6(H) mm |
| ring opening | 219.96(W)×138.6(H) mm |
| omtrek grootte | 236(W)×156.8(H) ×9.9(D) mm |
| oppervlak | Antiglare |
| helderheid | 500 cd/m² (Typ.) |
| kontras verhouding | 800:1 (Typ.) (TM) |
| kykhoek | 80/80/80/80 (Typ.)(CR≥10) |
| vertoonmodus | TN, Normally White, Transmissive |
| beste uitsig op | - |
| reaksie tyd | 8/22 (Typ.)(Tr/Td) |
| kleure vertoon | 16.2M 50% NTSC |
| tipe lamp | WLED , 50K hours , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| paneel gewig | 500g (Typ.) |
| aansoek | Industrial |
| sein koppelvlak | LVDS (1 ch, 8-bit) , 20 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
