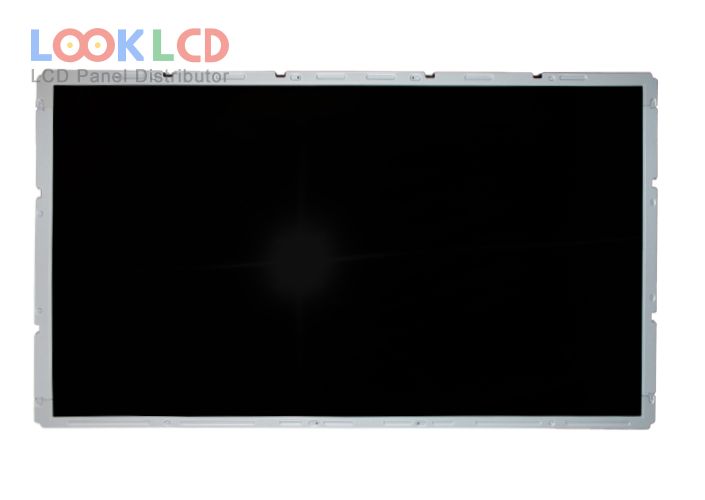

| Onderdeel nommer | T546HW01 V1 |
| Handelsmerk | AUO |
| Grootte | 55 |
| Toepassing | LCTV |
| Resolusie | 1920×1080 |
| Samestelling | LCM |
| Helderheid | 450 |
| CR | 5000:1 |
| Kleure | 1.07B |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | AUO |
| paneel model | T546HW01 V1 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 55 inch |
| resolusie | 1920(RGB)×1080 , FHD |
| vertoonmodus | AMVA, Normally Black, Transmissive |
| aktiewe area | 1209.6×680.4 mm |
| buitelyn | 1286×745 mm |
| oppervlak | Antiglare (Haze 11%) |
| helderheid | 450 cd/m² (Typ.) |
| kontras verhouding | 5000:1 (Typ.) |
| kleure vertoon | 1.07B (8-bit + Hi-FRC), CIE193172% |
| reaksie tyd | 6.5 (Typ.)(G to G) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 120Hz |
| tipe lamp | 18 pcsCCFLEmbedded (Inverter) |
| sein koppelvlak | LVDS (4 ch, 10-bit), 92 pins |
| insetspanning | 12.0V (Typ.) |
| aansoek | LCTV |
| LC550EUB-SCA1 | LG Display | 55 | 1920×1080 |
| LC550EUF-SDP1 | LG Display | 55 | 1920×1080 |
| LC550EUN-FEF1 | LG Display | 55 | 1920×1080 |
| LTI550HN04 | Samsung | 55 | 1920×1080 |
| T546HB01 V0 | AUO | 55 | 1920×1080 |
| T546HW01 V0 | AUO | 55 | 1920×1080 |
| T546HW01 V1 | AUO | 55 | 1920×1080 |
| T546HW02 V1 | AUO | 55 | 1920×1080 |
| T546HW04 V3 | AUO | 55 | 1920×1080 |
| V546H1-LS1 | Innolux | 55 | 1920×1080 |
| HV320WX2-500 | BOE | 31.5 | 1366×768 |
| LC320EXJ-SEK1 | LG Display | 31.5 | 1366×768 |
| LC320WUN-SCA3 | LG Display | 31.5 | 1920×1080 |
| LC370WUG-SCA2 | LG Display | 37 | 1920×1080 |
| T260HW02 V1 | AUO | 26.0 | 1920×1080 |
| T460HW08 VC | AUO | 46 | 1920×1080 |
| T650HVF03.0 | AUO | 65 | 1920×1080 |
| V500HK1-PS6 | Innolux | 50 | 1920×1080 |
| V580DJ2-QS5 | Innolux | 58 | 3840×2160 |
| V750DK1-KS5 Rev.F8 | Innolux | 75 | 3840×2160 |
