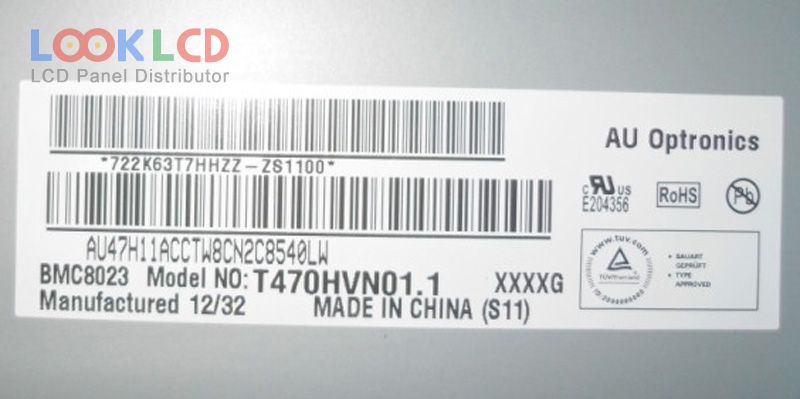

| Onderdeel nommer | T470HVN01.1 |
| Handelsmerk | AUO |
| Grootte | 47 |
| Toepassing | LCTV |
| Resolusie | 1920×1080 |
| Samestelling | LCM |
| Helderheid | 350 |
| CR | 3000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | AUO |
| paneel model | T470HVN01.1 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 47 inch |
| resolusie | 1920(RGB)×1080 , FHD |
| vertoonmodus | AMVA, Normally Black, Transmissive |
| aktiewe area | 1039.68×584.82 mm |
| buitelyn | 1070.6×622 mm |
| oppervlak | Antiglare (Haze 2%), Hard coating (3H) |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 3000:1 (Typ.) |
| kleure vertoon | 16.7M (8-bit), CIE193172% |
| reaksie tyd | 6.5 (Typ.)(G to G) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | WLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (2 ch, 8-bit), 51 pins |
| insetspanning | 12.0V (Typ.) |
| aansoek | LCTV |
| LC470DUE-SFU2 | LG Display | 47 | 1920×1080 |
| LC470EUD-SDF1 | LG Display | 47 | 1920×1080 |
| LC470EUD-SDF2 | LG Display | 47 | 1920×1080 |
| LC470EUN-SFM1 | LG Display | 47 | 1920×1080 |
| LC470WU1-SLA1 | LG Display | 47 | 1920×1080 |
| LC470WUF-SCA2 | LG Display | 47 | 1920×1080 |
| LD470WUN-SCA1 | LG Display | 47 | 1920×1080 |
| T470HVD01.1 | AUO | 47 | 1920×1080 |
| T470HVN01.0 | AUO | 47 | 1920×1080 |
| T470HVN01.1 | AUO | 47 | 1920×1080 |
| LC220WXE-TBA1 | LG Display | 21.6 | 1366×768 |
| LC320W01-SLA1 | LG Display | 31.5 | 1366×768 |
| LC370W01-A6 | LG Display | 37 | 1366×768 |
| LC420WUN-SAB1 | LG Display | 42 | 1920×1080 |
| LTA460HT-LH3 | Samsung | 46 | 1920×1080 |
| LTY460HT-LH1 | Samsung | 46 | 1920×1080 |
| T650HVN07.3 | AUO | 65 | 1920×1080 |
| V320B1-L01 | Innolux | 32.0 | 1366×768 |
| V420H2-LS2 Rev.C7 | Innolux | 42 | 1920×1080 |
| V500HK1-PS6 | Innolux | 50 | 1920×1080 |
