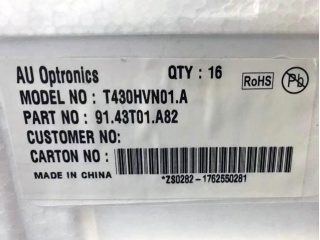

| Onderdeel nommer | T430HVN01.A CELL |
| Handelsmerk | AUO |
| Grootte | 43 |
| Toepassing | TV Sets |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD , CELL |
| Helderheid | |
| CR | 3000:1 |
| Kleure | 16.7M |
| Agterlig | No |
| Koppelvlak | |
| paneel handelsmerk | AUO |
| paneel grootte | 43" |
| resolusie | 1920(RGB)×1080, FHD, 51PPI |
| vertoon area | 940.896(W)×529.254(H) mm |
| helderheid | 0 cd/m² |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| kleure vertoon | 16.7M |
| frekwensie | - |
| paneel gewig | - |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| paneel model | T430HVN01.A CELL |
| paneel tipe | a-Si TFT-LCD , CELL |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| kontras verhouding | 3000:1 (Typ.) (TM) |
| vertoonmodus | AMVA3, Normally Black, Transmissive |
| reaksie tyd | 6.5 (Typ.)(G to G) |
| tipe lamp | No B/L |
| raakskerm | Without |
| aansoek | TV Sets |
| HV430FHB-N4A | BOE | 43 | 1920×1080 |
| LC430DUY-SHA1 | LG Display | 43 | 1920×1080 |
| LC430EGE-FHM1 | LG Display | 43 | 3840×2160 |
| LC430EGG-FHM1 | LG Display | 43 | 3840×2160 |
| LC430EUE-FHM1 | LG Display | 43 | 1920×1080 |
| LC430EUE-FHM2 | LG Display | 43 | 1920×1080 |
| LTI430LA01 | Samsung | 43 | 1920×480 |
| LTI430LA02 | Samsung | 43 | 1920×480 |
| RX430HD02-DC15 | ROGIN | 43 | 1920×1080 |
| T430QVN01.0 CELL | AUO | 43 | 3840×2160 |
