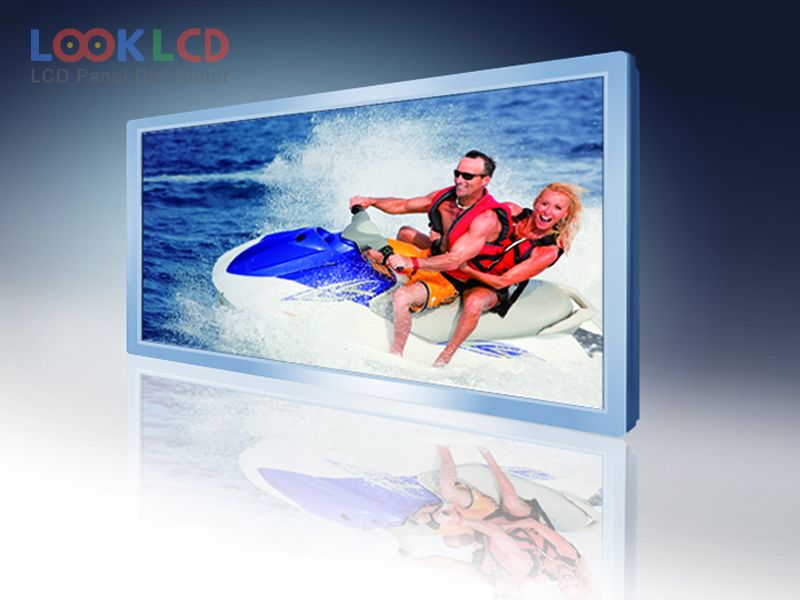

| Onderdeel nommer | T-55692D070H-LW-A-AAN |
| Handelsmerk | Kyocera |
| Grootte | 7.0 |
| Toepassing | IA |
| Resolusie | 800×480 |
| Samestelling | LCM |
| Helderheid | 1000 |
| CR | 1000:1 |
| Kleure | 262K/16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | OPTREX |
| paneel model | T-55692D070H-LW-A-AAN 1 Compatible model |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 7.0 inch |
| resolusie | 800(RGB)×480 , WVGA |
| vertoonmodus | IPS, Normally Black, Transmissive |
| aktiewe area | 152.4×91.44 mm |
| buitelyn | 169.8×109.7×9.4 mm |
| oppervlak | Clear, Hard coating (3H) |
| helderheid | 1000 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) |
| kleure vertoon | 262K/16.7M (6-bit / 8-bit), CIE193150% |
| reaksie tyd | 12/12 (Typ.)(Tr/Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | WLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (1 ch, 6/8-bit), 20 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | IA |
