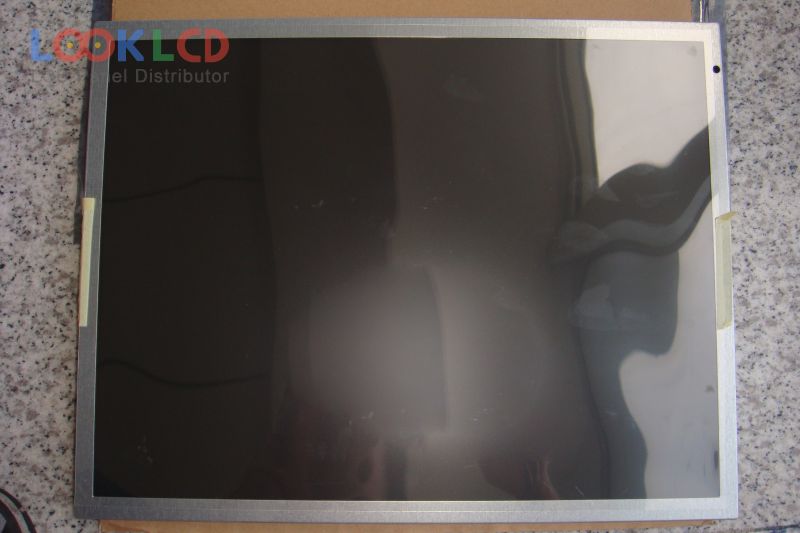

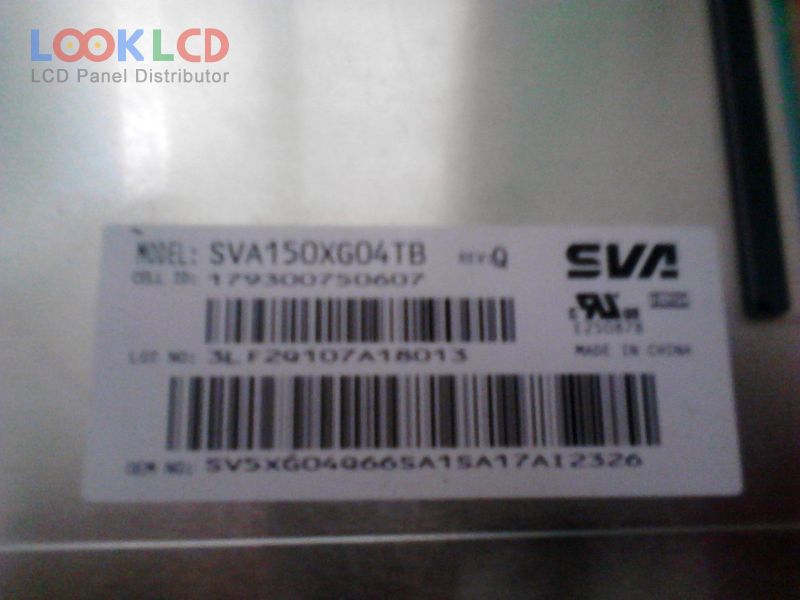

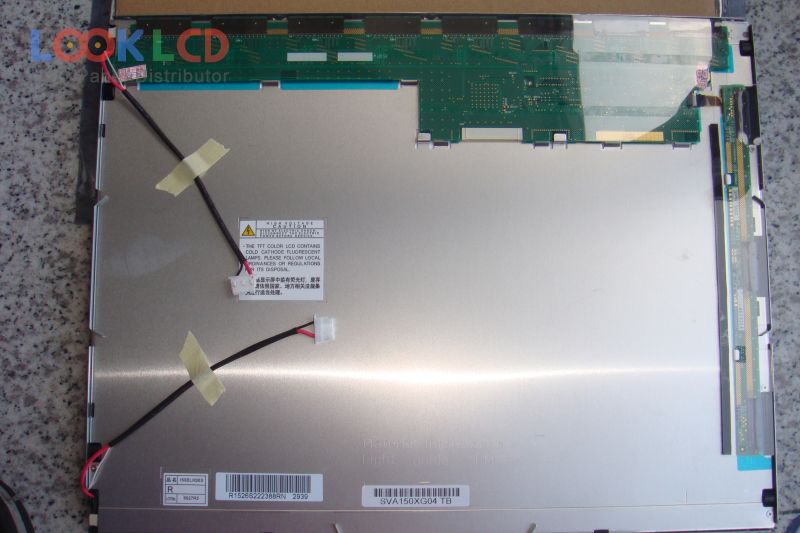

| Onderdeel nommer | SVA150XG04TB |
| Handelsmerk | SVA-NEC |
| Grootte | 15.0 |
| Toepassing | DMPC |
| Resolusie | 1024×768 |
| Samestelling | LCM |
| Helderheid | 250 |
| CR | 450:1 |
| Kleure | 16.7M |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | SVA-NEC |
| paneel model | SVA150XG04TB |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 15.0 inch |
| resolusie | 1024(RGB)×768 , XGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 304.128×228.096 mm |
| buitelyn | 326.5×253.5×12 mm |
| oppervlak | |
| helderheid | 250 cd/m² (Typ.) |
| kontras verhouding | 450:1 (Typ.) |
| kleure vertoon | 16.7M (6-bit + Hi-FRC), CIE193160% |
| reaksie tyd | 3/9 (Typ.)(Tr/Td) |
| kykhoek | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 2 pcsCCFLWithout Driver |
| sein koppelvlak | LVDS (1 ch, 8-bit), 20 pins |
| insetspanning | 3.3V (Typ.) |
| rohs: | |
| aansoek | DMPC |
| CLAA150XP01Q V2 | CPT | 15.0 | 1024×768 |
| G150XG01 V2 | AUO | 15.0 | 1024×768 |
| LP150X05-A2C1 | LG Display | 15.0 | 1024×768 |
| LTM150XO-L01 | Samsung | 15.0 | 1024×768 |
| LTM15C423S | TOSHIBA | 15.0 | 1024×768 |
| LTM15C428S | TOSHIBA | 15.0 | 1024×768 |
| LTN150KT02-801 | Samsung | 15.0 | 1600×900 |
| M150X3-T05 | Innolux | 15.0 | 1024×768 |
| SVA150XG04TB | SVA-NEC | 15.0 | 1024×768 |
| SVA150XG10TB | SVA-NEC | 15.0 | 1024×768 |
| HSD250MUW2-B00 | HannStar | 24.5 | 1920×1080 |
| LM190E08-TLG3 | LG Display | 19.0 | 1280×1024 |
| LM190E08-TLG4 | LG Display | 19.0 | 1280×1024 |
| LM201U04-A3K6 | LG Display | 20.1 | 1600×1200 |
| M150EW01 V0 | AUO | 15.0 | 1280×720 |
| M190A1-L0A | Innolux | 19.0 | 1440×900 |
| M240HW01 V1 | AUO | 24.0 | 1920×1080 |
| M270MWN1 R0 | IVO | 27.0 | 1920×1080 |
| MT170EN01 V.C | Innolux | 17.0 | 1280×1024 |
| MT185GW01 V.0 | Innolux | 18.5 | 1366×768 |
