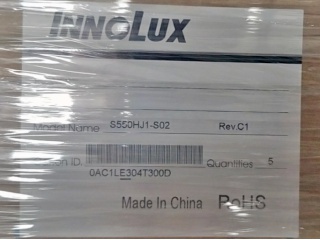

| Onderdeel nommer | S550HJ1-S02 |
| Handelsmerk | Innolux |
| Grootte | 55 |
| Toepassing | Video Wall |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 5000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| paneel handelsmerk | Innolux |
| paneel grootte | 55" |
| resolusie | 1920(RGB)×1080, FHD, 40PPI |
| vertoon area | 1209.6(W)×680.4(H) mm |
| omtrek grootte | 1213.45(W)×684.25(H) ×66.6(D) mm |
| helderheid | 500 cd/m² (Typ.) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| kleure vertoon | 16.7M 74% NTSC |
| frekwensie | 60Hz |
| videomuur naat | 3.9 mm (active to active seam) |
| paneel model | S550HJ1-S02 |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | 1210.6(W)×681.4(H) mm |
| oppervlak | Antiglare (Haze 25%) |
| kontras verhouding | 5000:1 (Typ.) (TM) |
| vertoonmodus | Super MVA, Normally Black, Transmissive |
| reaksie tyd | 9.5 (Typ.)(G to G) |
| tipe lamp | WLED , 50K hours , With LED Driver |
| raakskerm | Without |
| aansoek | Video Wall |
| HV550WUP-200 | BOE | 55 | 1920×1080 |
| LC550EUF-FGF1 | LG Display | 55 | 1920×1080 |
| LC550EUJ-FFK1 | LG Display | 55 | 1920×1080 |
| LD550DUN-THB3 | LG Display | 55 | 1920×1080 |
| LD550DUS-SEF1 | LG Display | 55 | 1920×1080 |
| LTA550HJ05 | Samsung | 55 | 1920×1080 |
| LTI550HN02 | Samsung | 55 | 1920×1080 |
| P546HW01 V0 | AUO | 55 | 1920×1080 |
| P550HVN02.2 | AUO | 55 | 1920×1080 |
| T546HW02 V1 | AUO | 55 | 1920×1080 |
