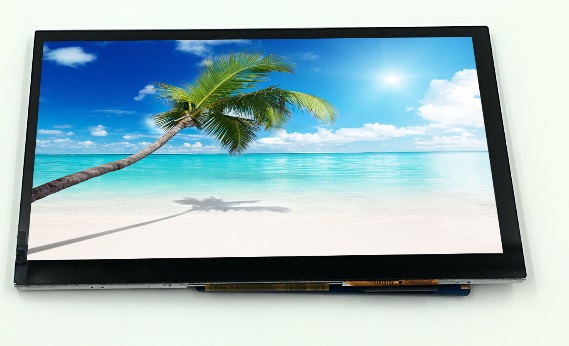

| Onderdeel nommer | S101WS07 |
| Handelsmerk | CDTECH |
| Grootte | 10.1 |
| Toepassing | Industrial |
| Resolusie | 1024×600 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 600:1 |
| Kleure | 16.7M |
| Agterlig | 3S6P |
| Koppelvlak | Parallel |
| vervaardiger | CDTECH |
| skerm grootte | 10.1 inch |
| pixel nommer | 1024(RGB)×600 (WSVGA) 117PPI |
| aktiewe area (mm) | 222.72 × 125.28 (H×V) |
| ring area (mm) | 226.34 × 128.1 (H×V) |
| helderheid | 200 cd/m² (Typ.) |
| kykhoek | 65/65/55/65 (Typ.)(CR≥10) |
| goeie uitsig by | 12 o'clock |
| kleurdiepte | 16.7M |
| massa | TBD |
| herlaaitempo | 60Hz |
| sein tipe | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| spanningstoevoer | 3.3/10.85/21/-5.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| maks. graderings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| model naam | S101WS07 |
| tipe skerm | LCM , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 235 × 143 × 5.39 (H×V×D) |
| behandeling | - |
| kontras verhouding | 600 : 1 (Typ.) (TM) |
| reaksie | 6/20 (Typ.)(Tr/Td) ms |
| werksmodus | TN, Normally White, Transmissive |
| agterlig | 3S6P WLED , 25K hours , No Driver |
| gebruik vir | Industrial |
| raakskerm | Without |
