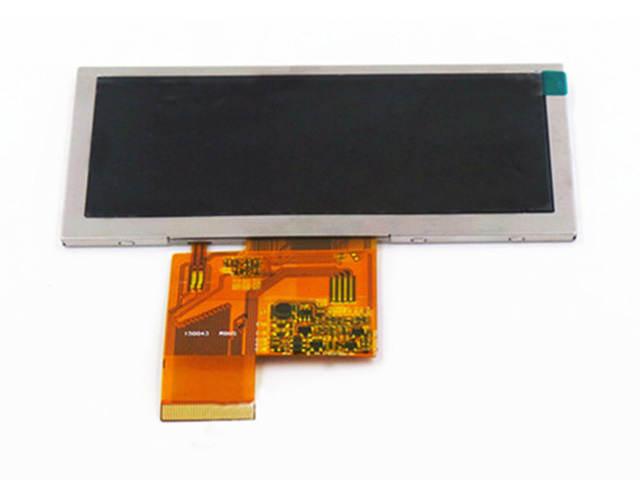

| Onderdeel nommer | S046WV01 |
| Handelsmerk | CDTECH |
| Grootte | 4.6 |
| Toepassing | Industrial |
| Resolusie | 800×320 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleure | 16.7M |
| Agterlig | 6S2P |
| Koppelvlak | Parallel |
| paneel handelsmerk | CDTECH |
| paneel model | S046WV01 |
| paneel grootte | 4.6" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 800(RGB)×320, 188PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 108(W)×43.2(H) mm |
| ring opening | 110.6(W)×46.0(H) mm |
| omtrek grootte | 120.7(W)×56.16(H) ×3.3(D) mm |
| oppervlak | - |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 500:1 (Typ.) (TM) |
| kykhoek | 65/65/55/65 (Typ.)(CR≥10) |
| vertoonmodus | TN, Normally White, Transmissive |
| beste uitsig op | 12 o'clock |
| reaksie tyd | 20 (Typ.)(Tr+Td) |
| kleure vertoon | 16.7M 50% NTSC |
| tipe lamp | 6S2P WLED , 25K hours , Without Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| paneel gewig | TBD |
| aansoek | Industrial |
| sein koppelvlak | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| insetspanning | 3.3V (Typ.)(VDD) |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
