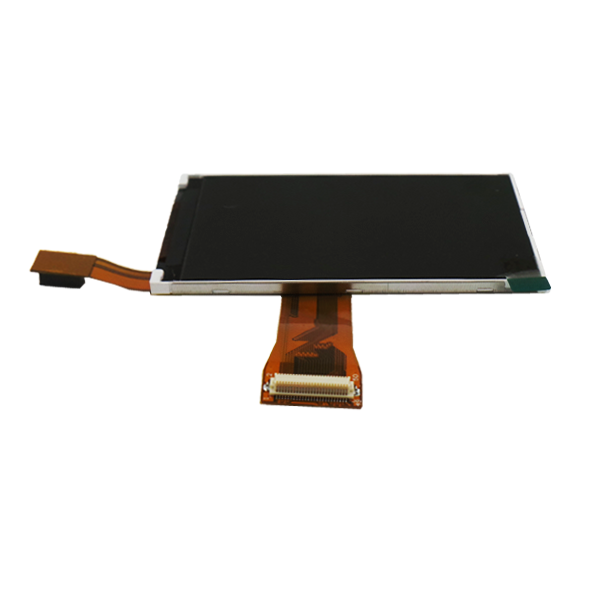

| Onderdeel nommer | S032Q10 |
| Handelsmerk | CDTECH |
| Grootte | 3.2 |
| Toepassing | Handheld & PDA |
| Resolusie | 240×320 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 350:1 |
| Kleure | 262K |
| Agterlig | 1S5P |
| Koppelvlak | CPU |
| paneel handelsmerk | CDTECH |
| paneel model | S032Q10 |
| paneel grootte | 3.2" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 240(RGB)×320, QVGA, 127PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 47.88(W)×63.84(H) mm |
| ring opening | - |
| omtrek grootte | 55.04(W)×77.7(H) ×2.5(D) mm |
| oppervlak | - |
| helderheid | 270 cd/m² (Typ.) |
| kontras verhouding | 350:1 (Typ.) (TM) |
| kykhoek | 55/65/65/65 (Typ.)(CR≥10) |
| vertoonmodus | TN, Normally White, Transmissive |
| beste uitsig op | 9 o'clock |
| reaksie tyd | 20 (Typ.)(Tr+Td) |
| kleure vertoon | 262K |
| tipe lamp | 1S5P WLED , 25K hours , Without Driver |
| frekwensie | - |
| raakskerm | Without |
| paneel gewig | TBD |
| aansoek | Handheld & PDA |
| sein koppelvlak | CPU , 37 pins FPC |
| insetspanning | 3.3/3.3V (Max.)(VCC/IOVCC) |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
