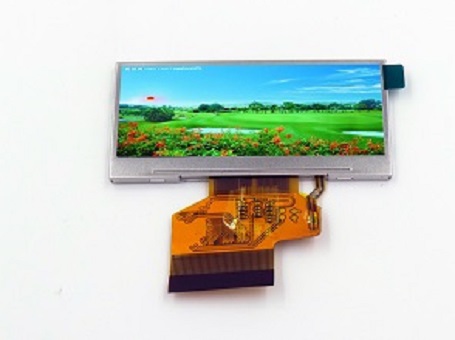

| Onderdeel nommer | S029Q03 |
| Handelsmerk | CDTECH |
| Grootte | 2.9 |
| Toepassing | Stretched Bar LCD |
| Resolusie | 320×120 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 400:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | 8/9/16/18-bit |
| handelsmerk | CDTECH |
| model | S029Q03 |
| diagonale grootte | 2.9 inch (1/2 cut of 3.5") |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 320(RGB)×120 115PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 70.08(H)×26.284(V) mm |
| buitelyn dof. | 76.9(H)×37.72(V) ×3.46(D) mm |
| ring area | 72.68(H)×28.88(V) mm |
| behandeling | - |
| helderheid | 300 cd/m² (Typ.) |
| kontras verhouding | 400:1 (Typ.) (TM) |
| kyk rigting | 12 o'clock |
| reaksie tyd | 8/17 (Typ.)(Tr/Td) |
| kykhoek | 65/65/55/65 (Typ.)(CR≥10) |
| bedryfsmodus | TN, Normally White, Transmissive |
| ondersteun kleur | 262K 61% NTSC |
| Ligbron | WLED [6S1P] , 30K hours , W/O Driver |
| gewig | TBD |
| ontwerp vir | Stretched Bar LCD |
| raamkoers | - |
| raakpaneel | Without |
| koppelvlak tipe | 8/9/16/18-bit 6800/8080 parallel, 6/9/16/18-bit RGB, SPI , 54 pins FPC |
| kragtoevoer | 3.3/3.3V (Typ.)(VCI/VDDIO) |
| omgewing | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
