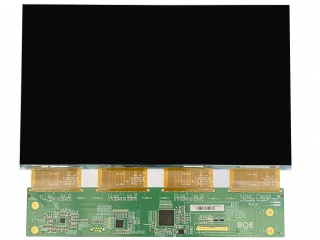

| Onderdeel nommer | RV101FBB-N00 |
| Handelsmerk | BOE |
| Grootte | 10.1 |
| Toepassing | 3D Printer |
| Resolusie | 4920×2880 |
| Samestelling | a-Si TFT-LCD, CELL |
| Helderheid | |
| CR | 400:1 |
| Kleure | Monochrome |
| Agterlig | No |
| Koppelvlak | eDP |
| paneel handelsmerk | BOE |
| paneel model | RV101FBB-N00 |
| paneel grootte | 10.1" |
| paneel tipe | a-Si TFT-LCD, CELL |
| resolusie | 4920×2880, 564PPI |
| pixel formaat | Rectangle |
| vertoon area | 221.4(W)×129.6(H) mm |
| ring opening | - |
| omtrek grootte | 227.43(W)×139.5(H) ×0.95(D) mm |
| oppervlak | Antiglare (Haze 25%), Hard coating (3H) |
| helderheid | 0 cd/m² |
| kontras verhouding | 400:1 (Min.) (TM) |
| kykhoek | 80/80/80/80 (Typ.)(CR≥10) |
| vertoonmodus | ADS, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 35 (Max.)(Tr+Td) |
| glas diepte | - |
| deurlaatbaarheid | 6.0% (Typ.) |
| kleure vertoon | Monochrome |
| tipe lamp | No B/L |
| frekwensie | 60Hz |
| raakskerm | Without |
| bestuurder ic | COGBuilt-in 4 source chips |
| paneel gewig | TBD |
| aansoek | 3D Printer |
| sein koppelvlak | eDP (4 Lanes) , 40 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 70 °C ; Storage Temp.: -10 ~ 80 °C |
