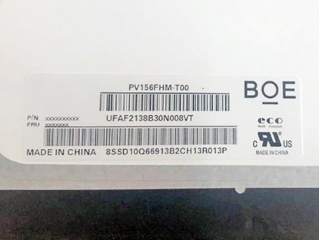

| Onderdeel nommer | PV156FHM-T00 |
| Handelsmerk | BOE |
| Grootte | 15.6 |
| Toepassing | Industrial |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD, Assemb |
| Helderheid | |
| CR | 800:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | BOE |
| model | PV156FHM-T00 (BOE083E) |
| diagonale grootte | 15.6 inch |
| tipe | a-Si TFT-LCD, Assembly |
| pixel formaat | 1920(RGB)×1080 [FHD] 141PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 344.16(H)×193.59(V) mm |
| buitelyn dof. | 361(H)×223(V) mm |
| ring area | - |
| behandeling | Antiglare, Hard coating (3H) |
| helderheid | 400 cd/m² (Min.) |
| kontras verhouding | 800:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedryfsmodus | - |
| ondersteun kleur | 16.7M 45% NTSC |
| Ligbron | WLED [11S4P] , 30K hours , With LED Driver |
| gewig | 670g (Max.) |
| ontwerp vir | Industrial |
| raamkoers | 60Hz |
| raakpaneel | On-Cell Touch |
| koppelvlak tipe | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 40 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
