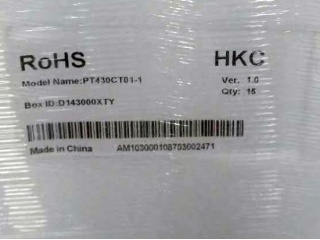

| Onderdeel nommer | PT430CT01-1 |
| Handelsmerk | HKC |
| Grootte | 43 |
| Toepassing | TV Sets |
| Resolusie | 1920×1080 |
| Samestelling | CELL , a-Si TFT-LC |
| Helderheid | |
| CR | 4000:1 |
| Kleure | 16.7M |
| Agterlig | No |
| Koppelvlak | LVDS |
| vervaardiger | HKC |
| model naam | PT430CT01-1 |
| skerm grootte | 43 inch |
| tipe skerm | CELL , a-Si TFT-LCD |
| pixel nommer | 1920(RGB)×1080 (FHD) 51PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 940.896 × 529.254 (H×V) |
| buitelyn (mm) | 953 × 543 × 1.37 (H×V×D) |
| ring area (mm) | - |
| behandeling | Antiglare (Haze 3%), Hard coating (3H) |
| helderheid | 0 cd/m² |
| kontras verhouding | 4000 : 1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| reaksie | 9.5 (Typ.)(G to G) ms |
| goeie uitsig by | Symmetry |
| werksmodus | FSA, Normally Black, Transmissive |
| glas dikte | 0.50+0.50 mm |
| deurlaatbaarheid | 7.0% (Typ.)(with Polarizer) |
| kleurdiepte | 16.7M 68% NTSC |
| agterlig | No B/L |
| massa | 1.60Kgs (Typ.) |
| gebruik vir | TV Sets |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| bestuurder ic lys | Built-in COF 6 source + 3 gate chips |
| sein tipe | LVDS (2 ch, 8-bit) , 51 pins Connector |
| spanningstoevoer | 12.0V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LC430DUE-FJM1 | LG Display | 43 | 1920×1080 |
| LC430DUY-SHA1 | LG Display | 43 | 1920×1080 |
| LC430DUY-SHA3 | LG Display | 43 | 1920×1080 |
| LC430EGE-FHM1 | LG Display | 43 | 3840×2160 |
| LC430EQL-SHA2 | LG Display | 43 | 3840×2160 |
| LC430EUE-FHM2 | LG Display | 43 | 1920×1080 |
| LTA430HW01 | Samsung | 43 | 1920×1080 |
| LTI430LA02 | Samsung | 43 | 1920×480 |
| RX430HD02-DC15 | ROGIN | 43 | 1920×1080 |
| T430QVN01.0 CELL | AUO | 43 | 3840×2160 |
