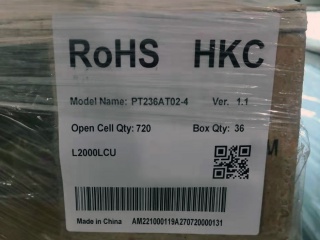

| Onderdeel nommer | PT236AT02-4 |
| Handelsmerk | HKC |
| Grootte | 23.6 |
| Toepassing | TV Sets |
| Resolusie | 1366×768 |
| Samestelling | CELL , a-Si TFT-LC |
| Helderheid | |
| CR | 3000:1 |
| Kleure | 16.7M |
| Agterlig | No |
| Koppelvlak | LVDS |
| vervaardiger | HKC |
| skerm grootte | 23.6 inch |
| pixel nommer | 1366(RGB)×768 (WXGA) 66PPI |
| aktiewe area (mm) | 521.471 × 293.184 (H×V) |
| ring area (mm) | - |
| helderheid | 0 cd/m² |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| goeie uitsig by | Symmetry |
| glas dikte | 0.50+0.50 mm |
| kleurdiepte | 16.7M 73% NTSC |
| massa | 500g (Typ.) |
| herlaaitempo | 60Hz |
| bestuurder ic lys | Built-in COF 2 source + 2 gate chips |
| sein tipe | LVDS (1 ch, 8-bit) , 30 pins Connector |
| spanningstoevoer | 12.0V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model naam | PT236AT02-4 |
| tipe skerm | CELL , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 535.471 × 306.404 × 1.4 (H×V×D) |
| behandeling | Antiglare, Hard coating (3H) |
| kontras verhouding | 3000 : 1 (Typ.) (TM) |
| reaksie | 9.5 (Typ.)(G to G) ms |
| werksmodus | FSA, Normally Black, Transmissive |
| deurlaatbaarheid | 5.8% (Typ.)(with Polarizer) |
| agterlig | No B/L |
| gebruik vir | TV Sets |
| raakskerm | Without |
