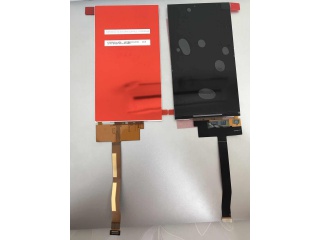

| Onderdeel nommer | PJ050IA-05L |
| Handelsmerk | Innolux |
| Grootte | 5.0 |
| Toepassing | Mobile Phone |
| Resolusie | 720×1280 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | 6S2P |
| Koppelvlak | MIPI |
| vervaardiger | Innolux |
| model naam | PJ050IA-05L |
| skerm grootte | 5.0 inch |
| tipe skerm | LCM , a-Si TFT-LCD |
| pixel nommer | 720(RGB)×1280 (WXGA) 294PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 62.1 × 110.4 (H×V) |
| buitelyn (mm) | 64.18 × 117.56 × 1.42 (H×V×D) |
| ring area (mm) | - |
| behandeling | Glare (Haze 0%), Hard coating (3H) |
| helderheid | 450 cd/m² (Typ.) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| reaksie | 25 (Typ.)(Tr+Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | AAS, Normally Black, Transmissive |
| kleurdiepte | 16.7M 72% NTSC |
| agterlig | 6S2P WLED , No Driver |
| massa | 17.2g |
| gebruik vir | Mobile Phone |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | MIPI (4 data lanes) , 30 pins Connector |
| spanningstoevoer | 1.8/5.4/-5.4V (Typ.)(VDDI/AVDD/AVEE) |
| maks. graderings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
