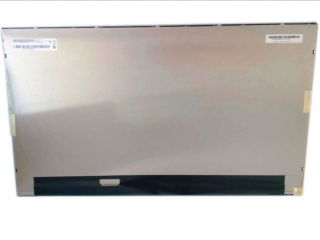

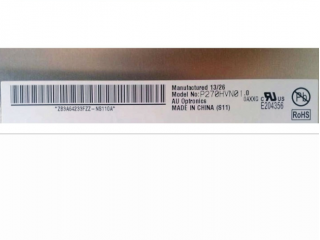

| Onderdeel nommer | P270HVN01.1 |
| Handelsmerk | AUO |
| Grootte | 27.0 |
| Toepassing | Digital Signage |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 3000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| handelsmerk | AUO |
| model | P270HVN01.1 |
| diagonale grootte | 27.0 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 1920(RGB)×1080 [FHD] 81PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 597.6(H)×336.15(V) mm |
| buitelyn dof. | 613.6(H)×356.85(V) ×10.5(D) mm |
| ring area | 601.6(H)×340.15(V) mm |
| behandeling | Antiglare, Hard coating (3H) |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 3000:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 20 (Typ.)(G to G) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| bedryfsmodus | AMVA, Normally Black, Transmissive |
| ondersteun kleur | 16.7M 90% NTSC |
| Ligbron | WLED [15S4P] , 30K hours , W/O Driver |
| gewig | 2.18Kgs (Typ.) |
| ontwerp vir | Digital Signage |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | LVDS (2 ch, 8-bit) , 30 pins Connector |
| kragtoevoer | 5.0V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
