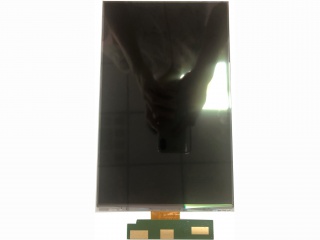

| Onderdeel nommer | P101GWWC R5 |
| Handelsmerk | IVO |
| Grootte | 10.1 |
| Toepassing | Pad & Tablet |
| Resolusie | 800×1280 |
| Samestelling | a-Si TFT-LCD, CELL |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | No |
| Koppelvlak | MIPI |
| handelsmerk | IVO |
| model | P101GWWC R5 |
| diagonale grootte | 10.1 inch |
| tipe | a-Si TFT-LCD, CELL |
| pixel formaat | 800(RGB)×1280 [WXGA] 150PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 135.36(H)×216.576(V) mm |
| buitelyn dof. | 139.36(H)×225.8(V) ×1.06(D) mm |
| ring area | - |
| behandeling | Antiglare |
| helderheid | 0 cd/m² |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedryfsmodus | IPS, Normally Black, Transmissive |
| plaat dikte | 0.40+0.40 mm |
| oordrag | 6.2% (Typ.) |
| ondersteun kleur | 16.7M 60% NTSC |
| Ligbron | No B/L |
| gewig | 85.0g (Max.) |
| ontwerp vir | Pad & Tablet |
| raamkoers | 60Hz |
| raakpaneel | Without |
| d-ic detail | COG Built-in 1 source chips |
| koppelvlak tipe | MIPI (4 data lanes) , 39 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
