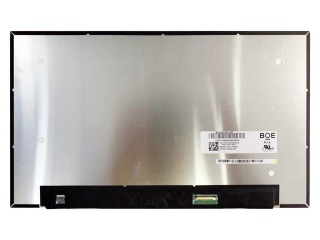

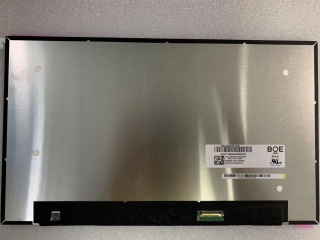

| Onderdeel nommer | NV140FHM-N4F |
| Handelsmerk | BOE |
| Grootte | 14.0 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 700:1 |
| Kleure | 262K |
| Agterlig | 8S4P |
| Koppelvlak | eDP |
| vervaardiger | BOE |
| model naam | NV140FHM-N4F (BOE07BB) |
| skerm grootte | 14.0 inch |
| tipe skerm | LCM , a-Si TFT-LCD |
| pixel nommer | 1920(RGB)×1080 (FHD) 157PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 309.31 × 173.99 (H×V) |
| buitelyn (mm) | 315.81 × 187.69 × 5.25 (H×V×D) |
| ring area (mm) | - |
| behandeling | Glare (Haze 0%), Hard coating (3H) |
| helderheid | 220 cd/m² (Typ.) |
| kontras verhouding | 700 : 1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| reaksie | 30 (Typ.)(Tr+Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | ADS, Normally Black, Transmissive |
| kleurdiepte | 262K 45% NTSC |
| agterlig | 8S4P WLED , 15K hours , With LED Driver |
| omtrek vorm | Slim (PCBA Bent, T≤3.0mm) |
| gebruik vir | Laptop |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B140HAN01.8 | AUO | 14.0 | 1920×1080 |
| B140HAT02.0 | AUO | 14.0 | 1920×1080 |
| B140XTN02.0 | AUO | 14.0 | 1366×768 |
| B140XW01 V0 | AUO | 14.0 | 1366×768 |
| B140XW01 V8 | AUO | 14.0 | 1366×768 |
| HSD140PHW2-A00 | HannStar | 14.0 | 1366×768 |
| HT140WXB-601 | BOE | 14.0 | 1366×768 |
| LP140WH1-TLB1 | LG Display | 14.0 | 1366×768 |
| N140FGE-L31 | Innolux | 14.0 | 1600×900 |
| NV140FHM-N41 | BOE | 14.0 | 1920×1080 |
