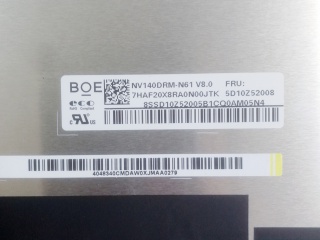

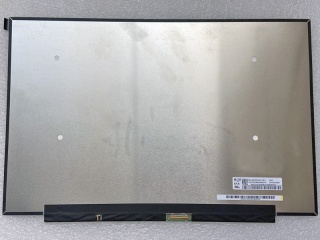

| Onderdeel nommer | NV140DRM-N61 |
| Handelsmerk | BOE |
| Grootte | 14.0 |
| Toepassing | Laptop |
| Resolusie | 2240×1400 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1500:1 |
| Kleure | 16.7M |
| Agterlig | 10S5P |
| Koppelvlak | eDP |
| paneel handelsmerk | BOE |
| paneel grootte | 14.0" |
| resolusie | 2240(RGB)×1400, 188PPI |
| vertoon area | 301.526(W)×188.454(H) mm |
| omtrek grootte | 306.55(W)×204.47(H) ×2.8(D) mm |
| helderheid | 300 cd/m² (Typ.) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| kleure vertoon | 16.7M 100% sRGB |
| frekwensie | 60Hz |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| sein koppelvlak | eDP (4 Lanes) , eDP1.4 , RBR (1.62G/lane) , 40 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| paneel model | NV140DRM-N61 (BOE0931) |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| oppervlak | Antiglare, Hard coating (3H) |
| kontras verhouding | 1500:1 (Typ.) (TM) |
| vertoonmodus | ADS, Normally Black, Transmissive |
| reaksie tyd | 20 (Typ.)(Tr+Td) |
| tipe lamp | 10S5P WLED , 15K hours , With LED Driver |
| raakskerm | Without |
| aansoek | Laptop |
