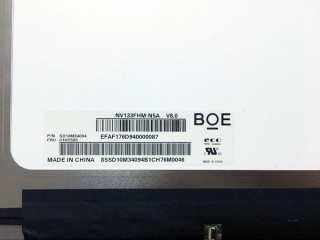

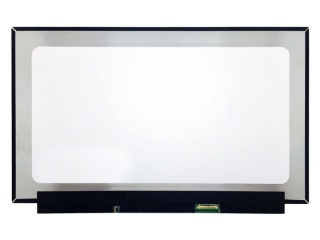

| Onderdeel nommer | NV133FHM-N5A |
| Handelsmerk | BOE |
| Grootte | 13.3 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | BOE |
| diagonale grootte | 13.3 inch |
| pixel formaat | 1920(RGB)×1080 [FHD] 166PPI |
| aktiewe area | 293.76(H)×165.24(V) mm |
| ring area | - |
| helderheid | 300 cd/m² (Typ.) |
| kyk rigting | Symmetry |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| ondersteun kleur | 262K 72% NTSC |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| raamkoers | 60Hz |
| koppelvlak tipe | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | NV133FHM-N5A (BOE0795) |
| tipe | a-Si TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 300.26(H)×187.45(V) ×2.45(D) mm |
| behandeling | Glare (Haze 0%) |
| kontras verhouding | 800:1 (Typ.) (TM) |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| bedryfsmodus | ADS, Normally Black, Transmissive |
| Ligbron | WLED [9S4P] , 15K hours , With LED Driver |
| ontwerp vir | Laptop |
| raakpaneel | Without |
| B133EW04 V0 | AUO | 13.3 | 1280×800 |
| B133EW07 V2 | AUO | 13.3 | 1280×800 |
| B133XW03 V1 | AUO | 13.3 | 1366×768 |
| LP133WH2-TLB2 | LG Display | 13.3 | 1366×768 |
| LP133WH2-TLL4 | LG Display | 13.3 | 1366×768 |
| LP133WX2-TLG6 | LG Display | 13.3 | 1280×800 |
| LTN133AT16-S01 | Samsung | 13.3 | 1280×800 |
| N133BGE-E31 | Innolux | 13.3 | 1366×768 |
| NV133FHM-N43 | BOE | 13.3 | 1920×1080 |
| NV133FHM-N52 | BOE | 13.3 | 1920×1080 |
