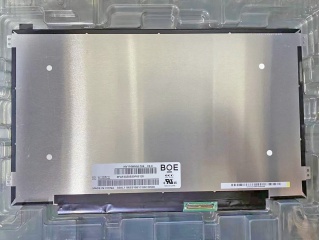

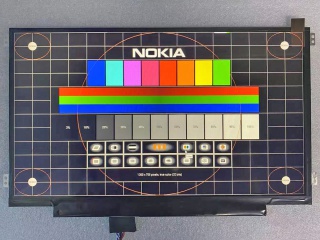

| Onderdeel nommer | NV116WHM-T04 |
| Handelsmerk | BOE |
| Grootte | 11.6 |
| Toepassing | Laptop |
| Resolusie | 1366×768 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 262K |
| Agterlig | 8S3P |
| Koppelvlak | eDP |
| paneel handelsmerk | BOE |
| paneel model | NV116WHM-T04 (BOE0965) |
| paneel grootte | 11.6" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1366(RGB)×768, WXGA, 135PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 256.125(W)×144(H) mm |
| ring opening | - |
| omtrek grootte | 278(W)×168(H) ×3.2(D) mm |
| oppervlak | Glare (Haze 0%), Hard coating (3H) |
| helderheid | 250 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| vertoonmodus | ADS, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 20 (Typ.)(Tr+Td) |
| kleure vertoon | 262K 50% NTSC |
| tipe lamp | 8S3P WLED , 15K hours , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | On-Cell Touch |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| aansoek | Laptop |
| sein koppelvlak | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 40 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
