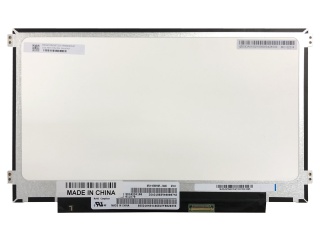

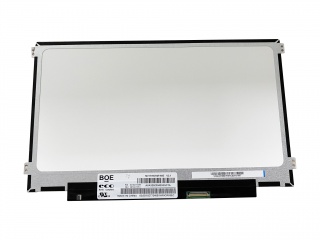

| Onderdeel nommer | NV116WHM-N45 |
| Handelsmerk | BOE |
| Grootte | 11.6 |
| Toepassing | Laptop |
| Resolusie | 1366×768 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 262K |
| Agterlig | 8S3P |
| Koppelvlak | |
| paneel handelsmerk | BOE |
| paneel grootte | 11.6" |
| resolusie | 1366(RGB)×768, WXGA, 135PPI |
| vertoon area | 256.125(W)×144(H) mm |
| omtrek grootte | 278(W)×168(H) ×3(D) mm |
| helderheid | 250 cd/m² (Typ.) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| kleure vertoon | 262K 50% NTSC |
| frekwensie | 60Hz |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| paneel model | NV116WHM-N45 |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| oppervlak | - |
| kontras verhouding | 800:1 (Typ.) (TM) |
| vertoonmodus | ADS, Normally Black, Transmissive |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| tipe lamp | 8S3P WLED , 15K hours , With LED Driver |
| raakskerm | Without |
| aansoek | Laptop |
| B116XAT03.1 | AUO | 11.6 | 1366×768 |
| B116XW01 V0 | AUO | 11.6 | 1366×768 |
| HN116WX1-100 | BOE | 11.6 | 1366×768 |
| LP116WH1-TLP1 | LG Display | 11.6 | 1366×768 |
| LP116WH6-SPA2 | LG Display | 11.6 | 1366×768 |
| LTN116AT02-D01 | Samsung | 11.6 | 1366×768 |
| N116BGE-L32 | Innolux | 11.6 | 1366×768 |
| N116BGE-LB1 | Innolux | 11.6 | 1366×768 |
| NT116WHM-N21 | BOE | 11.6 | 1366×768 |
| NT116WHM-N31 | BOE | 11.6 | 1366×768 |
