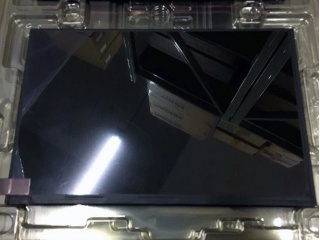

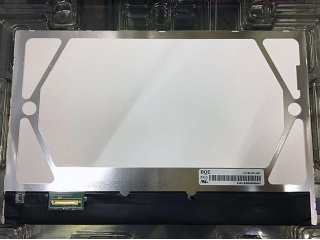

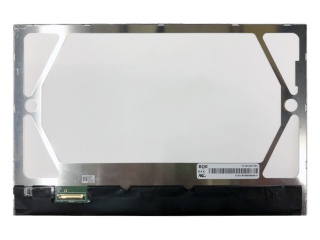

| Onderdeel nommer | NV101WXM-N51 |
| Handelsmerk | BOE |
| Grootte | 10.1 |
| Toepassing | Pad & Tablet |
| Resolusie | 1280×800 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| paneel handelsmerk | BOE |
| paneel grootte | 10.1" |
| resolusie | 1280(RGB)×800, WXGA, 149PPI |
| vertoon area | 216.96(W)×135.6(H) mm |
| omtrek grootte | 228.21(W)×148.86(H) ×4.59(D) mm |
| helderheid | 250 cd/m² (Typ.) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| kleure vertoon | 16.7M 50% NTSC |
| frekwensie | 60Hz |
| gewig | 145g (Max.) |
| paneel model | NV101WXM-N51 (BOE070B) |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| oppervlak | Glare (Haze 0%), Hard coating (2H), Antireflection |
| kontras verhouding | 800:1 (Typ.) (TM) |
| vertoonmodus | ADS, Normally Black, Transmissive |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| tipe lamp | WLED , With LED Driver |
| raakskerm | Without |
| aansoek | Pad & Tablet |
