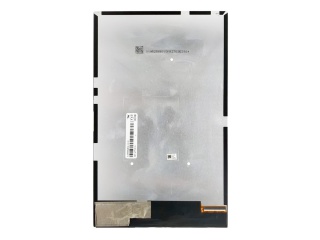

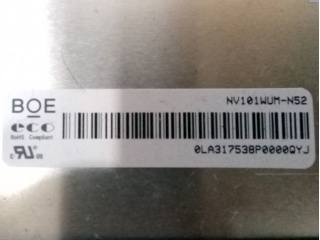

| Onderdeel nommer | NV101WUM-N52 |
| Handelsmerk | BOE |
| Grootte | 10.1 |
| Toepassing | Pad & Tablet |
| Resolusie | 1200×1920 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | MIPI |
| vervaardiger | BOE |
| skerm grootte | 10.1 inch |
| pixel nommer | 1200(RGB)×1920 (WUXGA) 225PPI |
| aktiewe area (mm) | 135.36 × 216.576 (H×V) |
| helderheid | 400 cd/m² (Typ.) |
| kykhoek | 80/80/80/80 (Typ.)(CR≥10) |
| goeie uitsig by | Symmetry |
| kleurdiepte | 16.7M 68% NTSC |
| massa | 132g (Typ.) |
| herlaaitempo | 60Hz |
| sein tipe | MIPI (4 data lanes) , 42 pins Connector |
| spanningstoevoer | 1.8/3.3V (Typ.)(VDD1/VDD3) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model naam | NV101WUM-N52 |
| tipe skerm | LCM , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 141.56 × 228.226 × 4.2 (H×V×D) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| reaksie | 35 (Max.)(Tr+Td) ms |
| werksmodus | ADS, Normally Black, Transmissive |
| agterlig | WLED , 15K hours , No Driver |
| gebruik vir | Pad & Tablet |
| raakskerm | Without |
| B101EW01 V1 | AUO | 10.1 | 1280×720 |
| HJ101IA-01F | Innolux | 10.1 | 1280×800 |
| HT101WSB-100 | BOE | 10.1 | 1024×600 |
| HV101HD1-1E2 | HYDIS | 10.1 | 1366×768 |
| LP101WS1-TLB2 | LG Display | 10.1 | 1024×576 |
| LP101WS1-TLB3 | LG Display | 10.1 | 1024×576 |
| LTL101DL03-T01 | Samsung | 10.1 | 2560×1600 |
| LTN101NT02-B01 | Samsung | 10.1 | 1024×600 |
| N101ICG-L21 Rev.A1 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.B1 | Innolux | 10.1 | 1280×800 |
