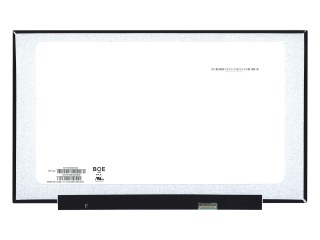

| Onderdeel nommer | NT173WDM-N25 |
| Handelsmerk | BOE |
| Grootte | 17.3 |
| Toepassing | Laptop |
| Resolusie | 1600×900 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | 10S5P |
| Koppelvlak | eDP |
| paneel handelsmerk | BOE |
| paneel model | NT173WDM-N25 (BOE0954) |
| paneel grootte | 17.3" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1600(RGB)×900, HD+, 106PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 382.08(W)×214.92(H) mm |
| ring opening | - |
| omtrek grootte | 389.88(W)×236.52(H) ×3.5(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 250 cd/m² (Typ.) |
| kontras verhouding | 500:1 (Typ.) (TM) |
| kykhoek | 45/45/20/40 (Min.)(CR≥10) |
| vertoonmodus | TN, Normally White, Transmissive |
| beste uitsig op | 6 o'clock |
| reaksie tyd | 12 (Typ.)(Tr+Td) |
| kleure vertoon | 262K 60% NTSC |
| tipe lamp | 10S5P WLED , 15K hours , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| vorm styl | Flat (PCBA Flat, T3.4~4.0mm) |
| aansoek | Laptop |
| sein koppelvlak | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B173HW02 V1 | AUO | 17.3 | 1920×1080 |
| B173RW01 V0 | AUO | 17.3 | 1600×900 |
| B173RW01 V2 HW7A | AUO | 17.3 | 1600×900 |
| HSD173PUW1-A | HannStar | 17.3 | 1920×1080 |
| LP173WD1-TLC2 | LG Display | 17.3 | 1600×900 |
| LP173WD1-TLN1 | LG Display | 17.3 | 1600×900 |
| LP173WF3-SLB1 | LG Display | 17.3 | 1920×1080 |
| LTN173KT01-J01 | Samsung | 17.3 | 1600×900 |
| N173FGE-E23 | Innolux | 17.3 | 1600×900 |
| N173FGE-L23 | Innolux | 17.3 | 1600×900 |
