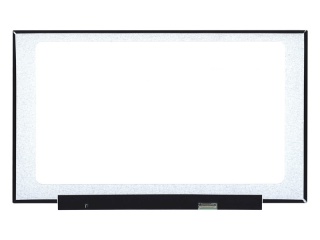

| Onderdeel nommer | NT173WDM-N15 |
| Handelsmerk | BOE |
| Grootte | 17.3 |
| Toepassing | Laptop |
| Resolusie | 1600×900 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | |
| handelsmerk | BOE |
| model | NT173WDM-N15 |
| diagonale grootte | 17.3 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 1600(RGB)×900 [HD+] 106PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 382.08(H)×214.92(V) mm |
| buitelyn dof. | 389.88(H)×236.52(V) ×3.5(D) mm |
| ring area | - |
| behandeling | Hard coating (3H) |
| helderheid | - |
| kontras verhouding | 500:1 (Typ.) (TM) |
| kyk rigting | 6 o'clock |
| reaksie tyd | 12 (Typ.)(Tr+Td) |
| kykhoek | 45/45/15/30 (Min.)(CR≥10) |
| bedryfsmodus | TN, Normally White, Transmissive |
| ondersteun kleur | 262K |
| Ligbron | WLED , 15K hours , With LED Driver |
| vorm styl | Flat (PCBA Flat, T3.4~4.0mm) |
| ontwerp vir | Laptop |
| raamkoers | 60Hz |
| raakpaneel | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
