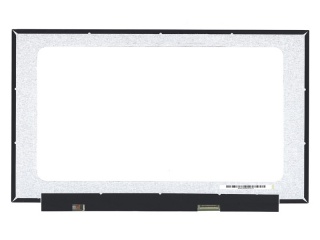

| Onderdeel nommer | NT156FHM-N62 |
| Handelsmerk | BOE |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | 9S4P |
| Koppelvlak | eDP |
| vervaardiger | BOE |
| skerm grootte | 15.6 inch |
| pixel nommer | 1920(RGB)×1080 (FHD) 141PPI |
| aktiewe area (mm) | 344.16 × 193.59 (H×V) |
| ring area (mm) | - |
| helderheid | 220 cd/m² (Typ.) |
| kykhoek | 45/45/20/40 (Typ.)(CR≥10) |
| goeie uitsig by | 6 o'clock |
| kleurdiepte | 262K 45% NTSC |
| omtrek vorm | Slim (PCBA Flat, T≤3.2mm) |
| herlaaitempo | 60Hz |
| sein tipe | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model naam | NT156FHM-N62 (BOE07F1) |
| tipe skerm | LCM , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 350.66 × 216.25 × 3.2 (H×V×D) |
| behandeling | Antiglare, Hard coating (3H) |
| kontras verhouding | 500 : 1 (Typ.) (TM) |
| reaksie | 12 (Typ.)(Tr+Td) ms |
| werksmodus | TN, Normally White, Transmissive |
| agterlig | 9S4P WLED , 15K hours , With LED Driver |
| gebruik vir | Laptop |
| raakskerm | Without |
| B156HW01 V1 | AUO | 15.6 | 1920×1080 |
| B156XW01 V2 | AUO | 15.6 | 1366×768 |
| CLAA156WA07A | CPT | 15.6 | 1366×768 |
| G156HTD01.0 | AUO | 15.6 | 1920×1080 |
| LP156WF6-SPH3 | LG Display | 15.6 | 1920×1080 |
| LTN156AT06-001 | Samsung | 15.6 | 1366×768 |
| LTN156AT19-001 | Samsung | 15.6 | 1366×768 |
| LTN156AT36-W01 | Samsung | 15.6 | 1366×768 |
| N156BGE-EA1 | Innolux | 15.6 | 1366×768 |
| NT156FHM-N41 | BOE | 15.6 | 1920×1080 |
