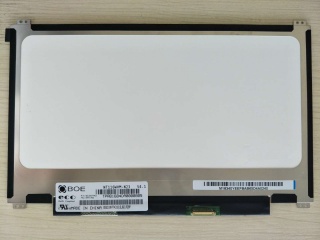

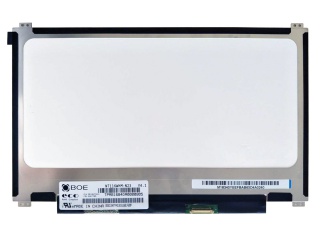

| Onderdeel nommer | NT116WHM-N23 |
| Handelsmerk | BOE |
| Grootte | 11.6 |
| Toepassing | Laptop |
| Resolusie | 1366×768 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | 8S3P |
| Koppelvlak | |
| vervaardiger | BOE |
| model naam | NT116WHM-N23 (BOE066B) |
| skerm grootte | 11.6 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 1366(RGB)×768 (WXGA) 135PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 256.125 × 144 (H×V) |
| buitelyn (mm) | 268 × 172.98 × 3 (H×V×D) |
| ring area (mm) | - |
| behandeling | Glare (Haze 0%), Hard coating (3H) |
| helderheid | 220 cd/m² (Typ.) |
| kontras verhouding | 500 : 1 (Typ.) (TM) |
| kykhoek | 45/45/20/40 (Typ.)(CR≥10) |
| reaksie | 12 (Typ.)(Tr+Td) ms |
| goeie uitsig by | 6 o'clock |
| werksmodus | TN, Normally White, Transmissive |
| kleurdiepte | 262K 45% NTSC |
| agterlig | 8S3P WLED , 15K hours , With LED Driver |
| omtrek vorm | Slim (PCBA Flat, T≤3.2mm) |
| gebruik vir | Laptop |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B116XTN02.3 HW0A | AUO | 11.6 | 1366×768 |
| B116XW03 V0 | AUO | 11.6 | 1366×768 |
| LP116WH4-SLN2 | LG Display | 11.6 | 1366×768 |
| N116B6-L02 | Innolux | 11.6 | 1366×768 |
| N116BGE-L11 | Innolux | 11.6 | 1366×768 |
| NT116WHM-N11 | BOE | 11.6 | 1366×768 |
| NT116WHM-N21 | BOE | 11.6 | 1366×768 |
| NT116WHM-N22 | BOE | 11.6 | 1366×768 |
| NT116WHM-N31 | BOE | 11.6 | 1366×768 |
| VVX11F009G00 | Panasonic | 11.6 | 1920×1080 |
