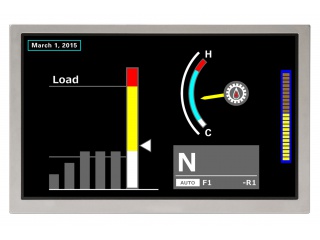

| Onderdeel nommer | NL8048BC21-03F |
| Handelsmerk | NLT |
| Grootte | 8.0 |
| Toepassing | Industrial Outdoor H |
| Resolusie | 800×480 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 262K/16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| handelsmerk | NLT |
| diagonale grootte | 8.0 inch |
| pixel formaat | 800(RGB)×480 [WVGA] 116PPI |
| aktiewe area | 174(H)×104.4(V) mm |
| ring area | - |
| helderheid | 1000 cd/m² (Typ.) |
| kyk rigting | Symmetry |
| kykhoek | 88/88/88/88 (Typ.)(CR≥10) |
| ondersteun kleur | 262K/16.7M 72% NTSC |
| gewig | 225g |
| raamkoers | 60Hz |
| koppelvlak tipe | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 6.8G (66.64 m/s²) |
| model | NL8048BC21-03F |
| tipe | a-Si TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 192(H)×122(V) mm |
| behandeling | Antiglare |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| reaksie tyd | 20 (Typ.)(Tr+Td) |
| bedryfsmodus | SFT, Normally Black, Transmissive |
| Ligbron | WLED |
| ontwerp vir | Industrial Outdoor High Brightness |
| raakpaneel | Without |
