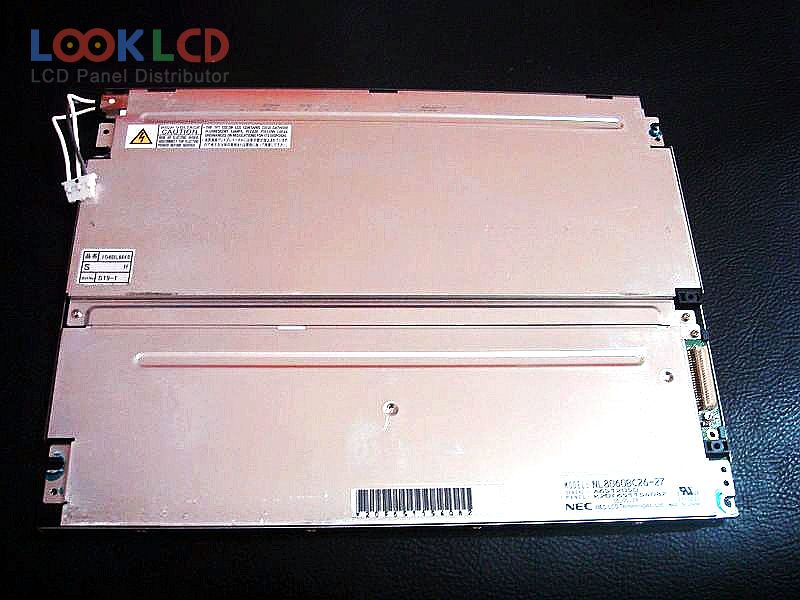

| Onderdeel nommer | NL6448BC26-27 |
| Handelsmerk | NLT |
| Grootte | 8.4 |
| Toepassing | IA |
| Resolusie | 640×480 |
| Samestelling | LCM |
| Helderheid | 500 |
| CR | 1000:1 |
| Kleure | 262K/16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | NEC |
| paneel model | NL6448BC26-27 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 8.4 inch |
| resolusie | 640(RGB)×480 , VGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 170.88×128.16 mm |
| buitelyn | 200×152 mm |
| oppervlak | Clear, Hard coating (3H) |
| helderheid | 500 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) |
| kleure vertoon | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| reaksie tyd | 3/15 (Typ.)(Tr/Td) |
| kykhoek | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 3 stringsWLEDWithout Driver |
| sein koppelvlak | LVDS (1 ch, 6/8-bit), 20 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | IA |
