| Onderdeel nommer | NE156QUM-NZ3 |
| Handelsmerk | BOE |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 3840×2160 |
| Samestelling | LCM , Oxide TFT-LC |
| Helderheid | |
| CR | 1200:1 |
| Kleure | 16.7M |
| Agterlig | 12S6P |
| Koppelvlak | eDP |
| vervaardiger | BOE |
| skerm grootte | 15.6 inch |
| pixel nommer | 3840(RGB)×2160 (UHD) 283PPI |
| aktiewe area (mm) | 344.218 × 193.622 (H×V) |
| ring area (mm) | - |
| helderheid | 400 cd/m² (Typ.) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| goeie uitsig by | Symmetry |
| kleurdiepte | 16.7M 100% sRGB |
| omtrek vorm | Slim (PCBA Flat, T≤3.2mm) |
| herlaaitempo | 120Hz |

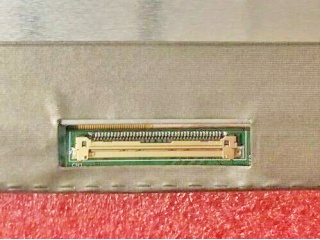

| sein tipe | eDP (4 Lanes) , eDP1.4 , HBR3 (8.1G/lane) , 40 pins Connector |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model naam | NE156QUM-NZ3 (BOE08E0) |
| tipe skerm | LCM , Oxide TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 350.66 × 216.12 × 2.6 (H×V×D) |
| behandeling | Antiglare, Hard coating (3H) |
| kontras verhouding | 1200 : 1 (Typ.) (TM) |
| reaksie | 10 (Typ.)(Tr+Td) ms |
| werksmodus | ADS, Normally Black, Transmissive |
| agterlig | 12S6P WLED , 15K hours , With LED Driver |
| gebruik vir | Laptop |
| raakskerm | Without |
