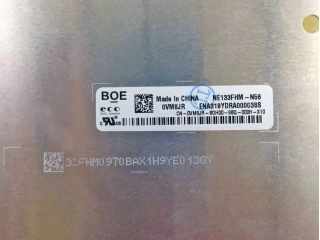

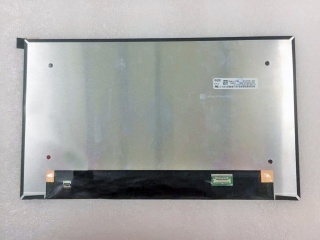

| Onderdeel nommer | NE133FHM-N56 |
| Handelsmerk | BOE |
| Grootte | 13.3 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | Oxide TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | BOE |
| model | NE133FHM-N56 (BOE088C) |
| diagonale grootte | 13.3 inch |
| tipe | Oxide TFT-LCD, LCM |
| pixel formaat | 1920(RGB)×1080 [FHD] 166PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 293.76(H)×165.24(V) mm |
| buitelyn dof. | 298.76(H)×176.24(V) ×4.1(D) mm |
| ring area | - |
| behandeling | Antiglare (Haze 25%), Hard coating (3H) |
| helderheid | 300 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| bedryfsmodus | ADS, Normally Black, Transmissive |
| ondersteun kleur | 16.7M |
| Ligbron | WLED [11S4P] , 15K hours , W/O Driver |
| vorm styl | Slim (PCBA Bent, T≤3.0mm) |
| ontwerp vir | Laptop |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | eDP (2 Lanes) , eDP1.4 , HBR1 (2.7G/lane) , 30 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 70 °C |
