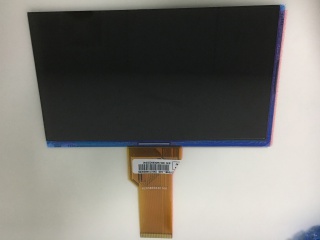

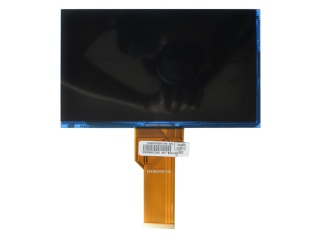

| Onderdeel nommer | NE070NB-04G |
| Handelsmerk | Innolux |
| Grootte | 7.0 |
| Toepassing | Digital Photo Frame |
| Resolusie | 800×480 |
| Samestelling | a-Si TFT-LCD , CELL |
| Helderheid | |
| CR | 500:1 |
| Kleure | 16.7M |
| Agterlig | No |
| Koppelvlak | Parallel |
| handelsmerk | Innolux |
| diagonale grootte | 7.0 inch |
| pixel formaat | 800(RGB)×480 [WVGA] 134PPI |
| aktiewe area | 154.08(H)×85.92(V) mm |
| ring area | - |
| helderheid | 0 cd/m² |
| kyk rigting | - |
| kykhoek | 70/70/50/70 (Typ.)(CR≥10) |
| plaat dikte | 0.50+0.50 mm |
| ondersteun kleur | 16.7M |
| gewig | 47.0g (Typ.) |
| raamkoers | 60Hz |
| d-ic detail | COG Built-in 1 source + 1 gate chips |
| koppelvlak tipe | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| kragtoevoer | 3.3/10.4/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL) |
| omgewing | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | NE070NB-04G |
| tipe | a-Si TFT-LCD , CELL |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 162.5(H)×96.62(V) ×1.43(D) mm |
| behandeling | Antiglare |
| kontras verhouding | 500:1 (Typ.) (TM) |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| bedryfsmodus | TN, Normally White, Transmissive |
| oordrag | 4.61% (Typ.)(with Polarizer) |
| Ligbron | No B/L |
| ontwerp vir | Digital Photo Frame |
| raakpaneel | Without |
