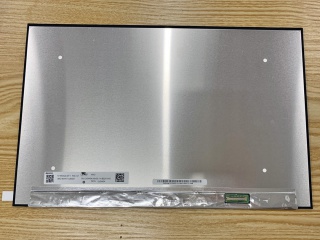

| Onderdeel nommer | N145GCG-GT1 |
| Handelsmerk | Innolux |
| Grootte | 14.5 |
| Toepassing | Laptop |
| Resolusie | 2560×1600 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1500:1 |
| Kleure | 1.07B |
| Agterlig | WLED |
| Koppelvlak | eDP |
| paneel handelsmerk | Innolux |
| paneel model | N145GCG-GT1 |
| paneel grootte | 14.5" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 2560(RGB)×1600, WQXGA, 208PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 312.19(W)×195.12(H) mm |
| ring opening | - |
| omtrek grootte | 316.19(W)×205.12(H) ×4.4(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 300 cd/m² (Typ.) |
| kontras verhouding | 1500:1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| vertoonmodus | AAS, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 16/14 (Typ.)(Tr/Td) |
| kleure vertoon | 1.07B 100% sRGB |
| tipe lamp | WLED , 15K hours , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| vorm styl | - |
| aansoek | Laptop |
| sein koppelvlak | eDP (4 Lanes) , eDP1.4 , 40 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
