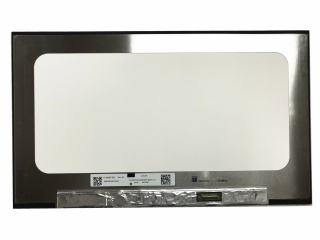

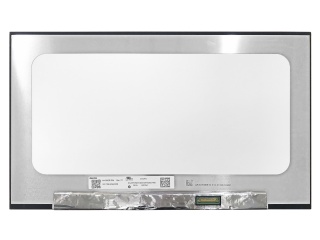

| Onderdeel nommer | N140BGE-E54 |
| Handelsmerk | Innolux |
| Grootte | 14.0 |
| Toepassing | Laptop |
| Resolusie | 1366×768 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | eDP |
| paneel handelsmerk | Innolux |
| paneel model | N140BGE-E54 (CMN14E6) |
| paneel grootte | 14.0" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1366(RGB)×768, WXGA, 112PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 309.399(W)×173.952(H) mm |
| ring opening | - |
| omtrek grootte | 315.9(W)×186.1(H) ×5.25(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 220 cd/m² (Typ.) |
| kontras verhouding | 500:1 (Typ.) (TM) |
| kykhoek | 45/45/20/45 (Typ.)(CR≥10) |
| vertoonmodus | TN, Normally White, Transmissive |
| beste uitsig op | 6 o'clock |
| reaksie tyd | 3/7 (Typ.)(Tr/Td) |
| kleure vertoon | 262K 45% NTSC |
| tipe lamp | WLED , 15K hours , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| vorm styl | Slim (PCBA Bent, T≤3.0mm) |
| aansoek | Laptop |
| sein koppelvlak | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
