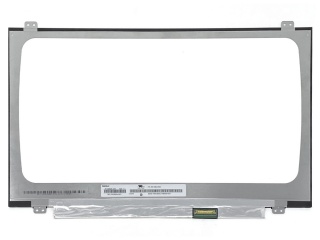

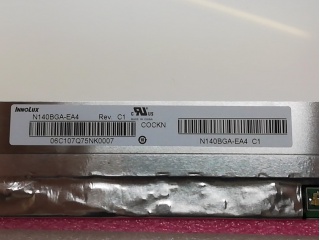

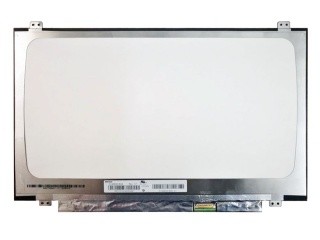

| Onderdeel nommer | N140BGA-EA4 Rev.C1 |
| Handelsmerk | Innolux |
| Grootte | 14.0 |
| Toepassing | Laptop |
| Resolusie | 1366×768 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | 10S3P |
| Koppelvlak | |
| paneel handelsmerk | Innolux |
| paneel grootte | 14.0" |
| resolusie | 1366(RGB)×768, WXGA, 112PPI |
| vertoon area | 309.399(W)×173.952(H) mm |
| omtrek grootte | 315.9(W)×205.1(H) ×3(D) mm |
| helderheid | 220 cd/m² (Typ.) |
| kykhoek | 45/45/20/45 (Typ.)(CR≥10) |
| beste uitsig op | 6 o'clock |
| kleure vertoon | 262K 45% NTSC |
| frekwensie | 60Hz |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| paneel model | N140BGA-EA4 Rev.C1 (CMN14D6) |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| oppervlak | Antiglare, Hard coating (3H) |
| kontras verhouding | 500:1 (Typ.) (TM) |
| vertoonmodus | TN, Normally White, Transmissive |
| reaksie tyd | 3/8 (Typ.)(Tr/Td) |
| tipe lamp | 10S3P WLED , 15K hours , With LED Driver |
| raakskerm | Without |
| aansoek | Laptop |
