| Onderdeel nommer | N140BGA-E54 |
| Handelsmerk | Innolux |
| Grootte | 14.0 |
| Toepassing | Laptop |
| Resolusie | 1366×768 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 600:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | Innolux |

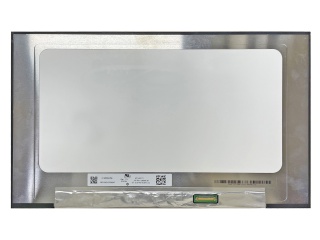

| model | N140BGA-E54 (CMN14E6) |
| diagonale grootte | 14.0 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 1366(RGB)×768 [WXGA] 112PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 309.399(H)×173.952(V) mm |
| buitelyn dof. | 315.81(H)×186.07(V) ×5(D) mm |
| ring area | - |
| behandeling | Antiglare, Hard coating (3H) |
| helderheid | 250 cd/m² (Typ.) |
| kontras verhouding | 600:1 (Typ.) (TM) |
| kyk rigting | 6 o'clock |
| reaksie tyd | 3/7 (Typ.)(Tr/Td) |
| kykhoek | 45/45/20/45 (Typ.)(CR≥10) |
| bedryfsmodus | TN, Normally White, Transmissive |
| ondersteun kleur | 262K 45% NTSC |
| Ligbron | WLED [10S3P] , 15K hours , With LED Driver |
| vorm styl | Slim (PCBA Bent, T≤3.0mm) |
| ontwerp vir | Laptop |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| N140B6-D11 | Innolux | 14.0 | 1366×768 |
| N140B6-L06 | Innolux | 14.0 | 1366×768 |
| N140BGE-E33 | Innolux | 14.0 | 1366×768 |
| N140BGE-E43 | Innolux | 14.0 | 1366×768 |
| N140BGE-L12 | Innolux | 14.0 | 1366×768 |
| N140BGE-L21 | Innolux | 14.0 | 1366×768 |
| N140BGE-L23 | Innolux | 14.0 | 1366×768 |
| N140BGE-L31 | Innolux | 14.0 | 1366×768 |
| N140BGE-L32 | Innolux | 14.0 | 1366×768 |
| N140BGE-LB2 | Innolux | 14.0 | 1366×768 |
