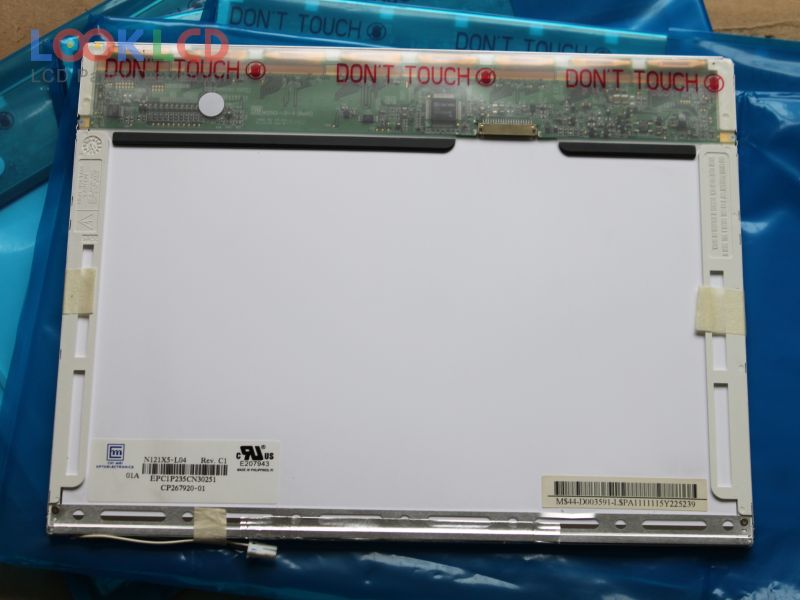

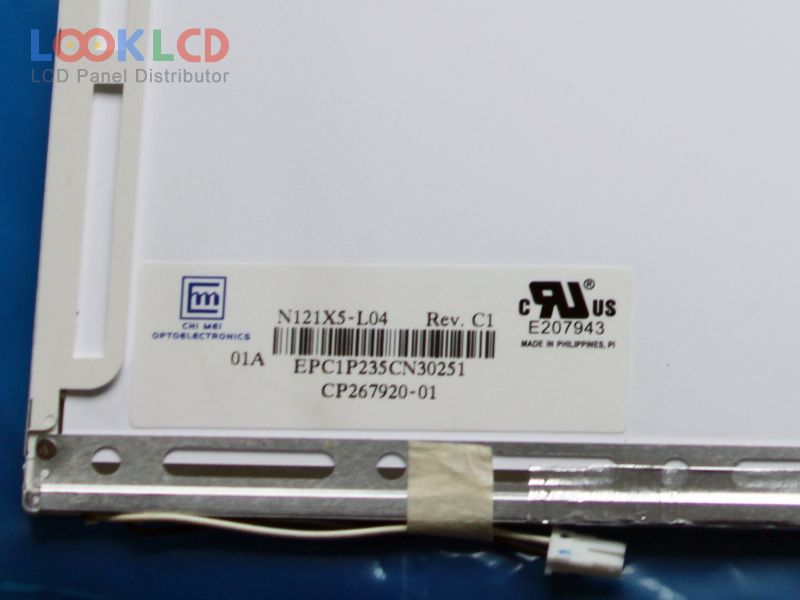

| Onderdeel nommer | N121X5-L04 |
| Handelsmerk | Innolux |
| Grootte | 12.1 |
| Toepassing | NBPC |
| Resolusie | 1024×768 |
| Samestelling | LCM |
| Helderheid | 175 |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | CMO |
| paneel model | N121X5-L04 6 Compatible model |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 12.1 inch |
| resolusie | 1024(RGB)×768 , XGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 245.76×184.32 mm |
| buitelyn | 261×198×5 mm |
| oppervlak | Antiglare (Haze 25%), Hard coating (3H) |
| helderheid | 175 cd/m² (Typ.) |
| kontras verhouding | 500:1 (Typ.) |
| kleure vertoon | 262K (6-bit), CIE193145% |
| reaksie tyd | 5/11 (Typ.)(Tr/Td) |
| kykhoek | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 1 pcsCCFLWithout Driver |
| sein koppelvlak | LVDS (1 ch, 6-bit), 20 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | NBPC |
