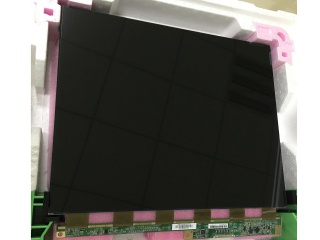

| Onderdeel nommer | MV190E0B-N20 |
| Handelsmerk | BOE |
| Grootte | 19.0 |
| Toepassing | Desktop Monitor |
| Resolusie | 1280×1024 |
| Samestelling | CELL , a-Si TFT-LC |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | No |
| Koppelvlak | LVDS |
| vervaardiger | BOE |
| skerm grootte | 19.0 inch |
| pixel nommer | 1280(RGB)×1024 (SXGA) 86PPI |
| aktiewe area (mm) | 374.784 × 299.827 (H×V) |
| ring area (mm) | - |
| helderheid | 0 cd/m² |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| goeie uitsig by | Symmetry |
| glas dikte | 0.50+0.50 mm |
| kleurdiepte | 16.7M |
| massa | 361g (Typ.) |
| herlaaitempo | 60Hz |
| bestuurder ic lys | Built-in COF 6 source chips |
| sein tipe | LVDS (2 ch, 8-bit) , 30 pins Connector |
| spanningstoevoer | 5.0V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model naam | MV190E0B-N20 |
| tipe skerm | CELL , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 388.7 × 308.7 × 1.32 (H×V×D) |
| behandeling | Antiglare (Haze 25%), Hard coating (3H) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| reaksie | 14 (Typ.)(G to G) ms |
| werksmodus | ADS, Normally Black, Transmissive |
| deurlaatbaarheid | 4.5% (Typ.)(with Polarizer) |
| agterlig | No B/L |
| gebruik vir | Desktop Monitor |
| raakskerm | Without |
